True 0-5v Power Supply

billyjojimbob · Jun 9, 2011

Cheers guys.

ericgibbs · Jun 9, 2011

billyjojimbob said:
Cheers guys.

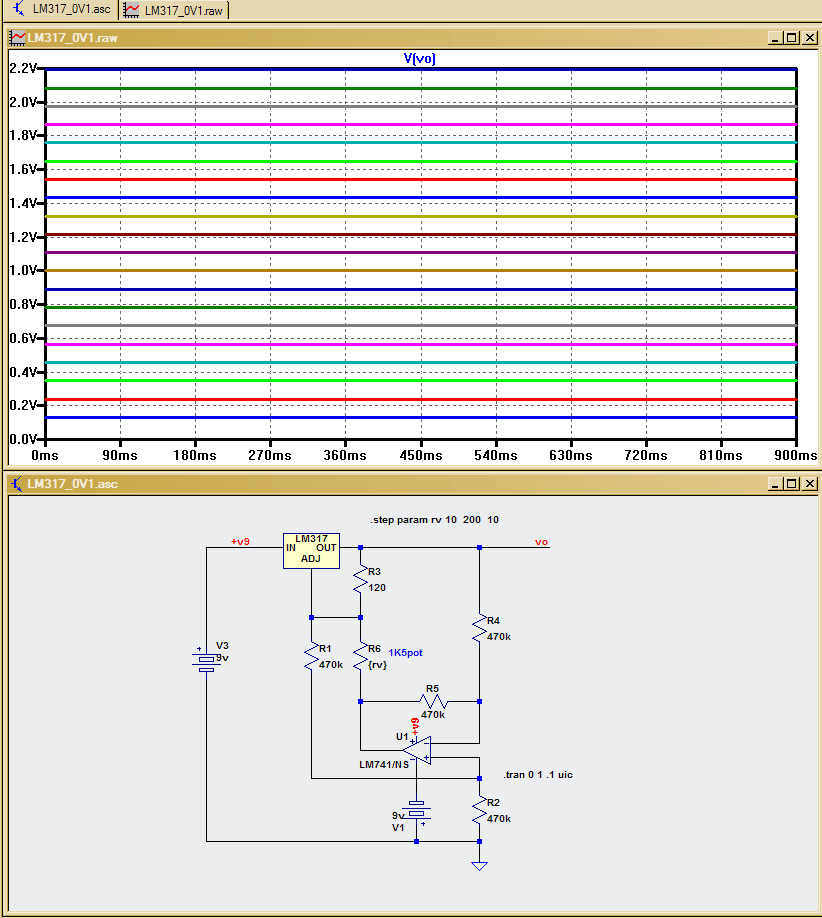

For reference, this is you circuit , with the second battery to the 741

The 1k5 pots is varied from 10R thru 200R for the SIM

billyjojimbob · Jun 11, 2011

Software

What software are you using for the circuit sim?

ericgibbs · Jun 11, 2011

billyjojimbob said:
What software are you using for the circuit sim?

hi,
Its LTspice, a free download, also a useful source of data is to join the Yahoo Ltspice user group.
I will post the link

**broken link removed**

http://www.linear.com/designtools/software/

**broken link removed**

billyjojimbob · Jun 11, 2011

Once again, thanks.
