Switch a 12v circuit with a 5v circuit

Status
Not open for further replies.

cc005340

New Member
Hi All,

Sorry about this but i am more a computer programmer and therefore dont know so much with electronics, however here is my question i have a velleman experiment board K8055N (**broken link removed**) which has digital output at 5v, what i am trying to do is from this digital output i want to switch on a 12v component, however of course there is not enough voltage from the USB board to power the component, how would i go about solving this issue?

Thanks very much for your responses! :)

Scott

hi,
What is the 12V component.?
E

EDIT:
Do you need help identifying the component.?

Last edited:
This is what you have:
Specifications
  • 5 digital inputs (0= ground, 1= open) (on board test buttons provided)
  • 2 analog inputs with attenuation and amplification option (internal test +5V provided)
  • 8 digital open collector output switches (max. 50V/100mA) (on board LED indication)
  • 2 analog outputs:
    • 0 to 5V, output resistance 1K5
    • PWM 0 to 100% open collector outputs max 100mA / 40V (on board LED indication)
  • general conversion time: 20ms per command
  • power supply through USB: approx. 70mA
  • dimensions: 5.7 x 3 x 0.8"
So per Eric's question the requirments of your 12 volt components or devices need to be known. What you have gets you up to about 100 mA and I would remain below that. So if your component requires more than about 100 mA (more like 80 mA) then more effort is needed like adding a relay or driving transistor. It will always go back to what your component is.

Ron

hi,
Extract: Magnet spec.
Input Voltage: 12V DC
Current: 0.33A

The link advice looks OK.

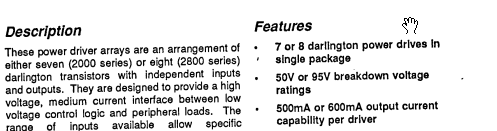

The ULN is rated at 500mA/pin , use the clamp pin as stated.

E


Attachments

  • AAesp02.gif
    19.7 KB · Views: 172
Hi Eric,

Thank you for your comment, just a little concerned that the output is stated as (50V/100mA) is that a max of 100mA as the electromagnet runs at 0.33A which is 330mA of course :)

What's your thoughts?

Scott

Hi,
As the Velleman guy says in your link to that forum, the 100mA is VERY conservative, if you use only one output from the ULN.

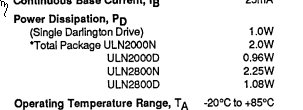

Its stated as 100mA in case you used all the output pins at say 100mA, you could exceed the ULN power dissipation.
E


Attachments

  • AAesp03.gif
    9.4 KB · Views: 157
Eric, you're a star thank you for this detail, i will try this out soon and update the forum post on the result. Just to be clear i should be able to just run just the one component at 0.33A on one output pin as long as i dont add any more components? Thank you

Eric, you're a star thank you for this detail, i will try this out soon and update the forum post on the result. Just to be clear i should be able to just run just the one component at 0.33A on one output pin as long as i dont add any more components? Thank you

hi,
Yes.
I have a K8055, which I have modified and reprogrammed to use a 18F2550.
Checking it visually I see that the ULN is OK for 330mA, but be SURE to connect the PCB clamp pin to +12V ,as per the other forum link.
E
