Pure Logic Gates Basketball Scoreboard

AnalogKid said:

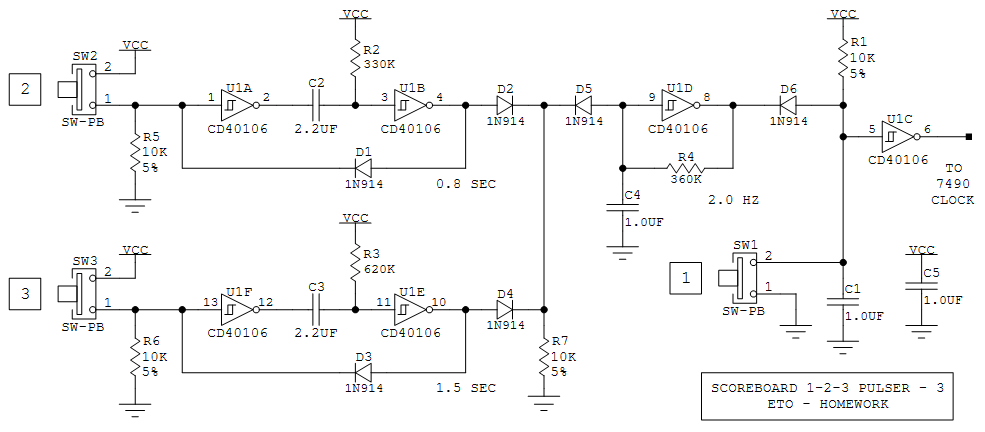

And finally, here is the circuit in post #35 reworked to use a single IC, a CD40106 hex Schmitt trigger inverter. The OR and oscillator-enable functions are done with diodes and a resistor.
