Pulse Width Modulation With SG3524

Status
Not open for further replies.

Alexsgarage

New Member

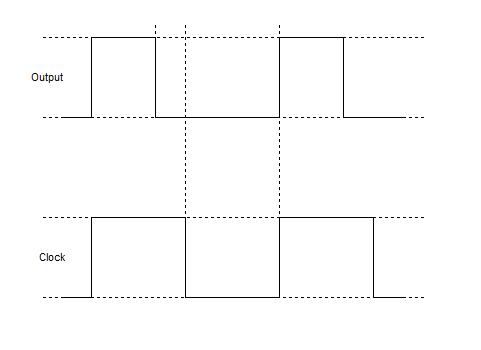

I have an SG3524 PWM (Datasheet Here), I need to produce an output with a variable duty cycle, I am using the IC's internal oscillator to produce a clock signal. See the picture to understand what I am talking about.


Attachments

  • Variable Dead Time Oscillator.jpg
    Variable Dead Time Oscillator.jpg
    10.8 KB · Views: 2,588
