PSU trouble...please help

Status
Not open for further replies.

magicmatt97

New Member
Hey everybody,

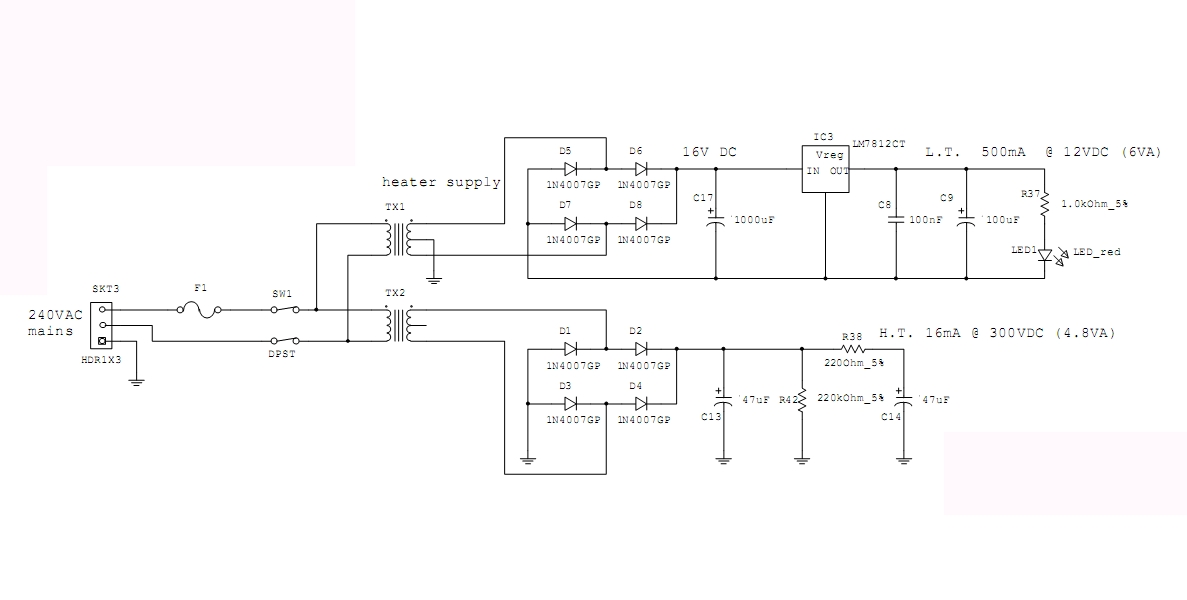

I'm new here, and was wondering if anyone could help me with a circuit diagram for a psu.

I've attached the diagram, and i cant work out what the two transformers should be.

Any help would be great

Thanks in advance

Matt


Attachments

Sydney

New Member
This appears to be an old power supply with both a heater supply for a CRT and a high voltage supply. You would be better off googling your supply voltage and current requirements. You will get a single transformer design and an explenation. I hope this helps.
