Hello guys,
I am trying to design a R/C Indoor plane. I want to design either plane and the controller.
Other guys used to use IR sensors for the controller, but I want to try Ultrasonic too.
I want to use just an unpacked (to save the weight) 16.2mm ultrasonic sensor for the receiver and 7 other 16.2mm sensors for the transmitter. here is the dimensions of the sensor which I want to use: https://www.electro-tech-online.com/custompdfs/2010/03/KT-400242.pdf

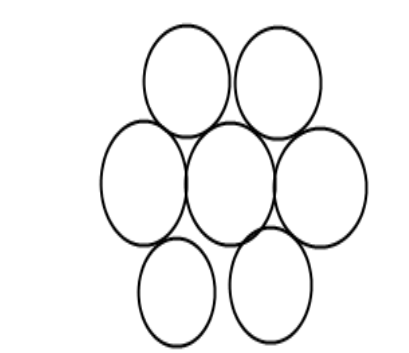

I want to arrange the transmitter's sensors as hexagons like to sample pic I have drown using.
The problem I am facing Is that I am not able to find any ultrasonic sensor in the Protel DXP (I am using version 2004) to arrange the transmitter sensors.
I do not know how to design one too?
Do you know If I will find any in other latest versions of the software?
Thanks.
