This is the sort of thing you should try to work out yourself. I recommend you download , redraw the schematic, and use the EAGLE PCB layout editor to design the PCB.
Good luck!
Der Strom

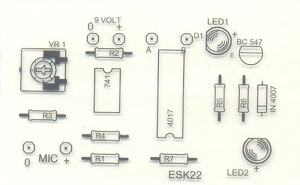

No sir it is just to show the components which we are using.........like BC 547 transistor is displayed in right hand top corner but in PCB layout it in right hand bottom corner
No sir it is just to show the components which we are using.........like BC 547 transistor is displayed in right hand top corner but in PCB layout it in right hand bottom corner
hi,
thnx ericgibbs it worked well.....................i have one more prob can u plz tell me that how to print the PCB layout without that skin colour as i know how to make the PCB but for that we have to print the PCB layout on a smoth paper so how to remove the skin colour and make the pcb colour dark black,
Thanking you
ericgibbs
hi,
thnx ericgibbs it worked well.....................i have one more prob can u plz tell me that how to print the PCB layout without that skin colour as i know how to make the PCB but for that we have to print the PCB layout on a smoth paper so how to remove the skin colour and make the pcb colour dark black,
Thanking you
ericgibbs
alec_t
thnx but i was thinking that the solution you have suggested will be ok to make a pcb if you know how to make it..............by printingon a smooth paper
After selecting concerned layer and dimension, size as 1:1,
you might select "Black"by ticking it.
this makes your print totally B&W instead of tones of colors.
