Multisim mistake?

Status
Not open for further replies.
B

BobSponge

New Member

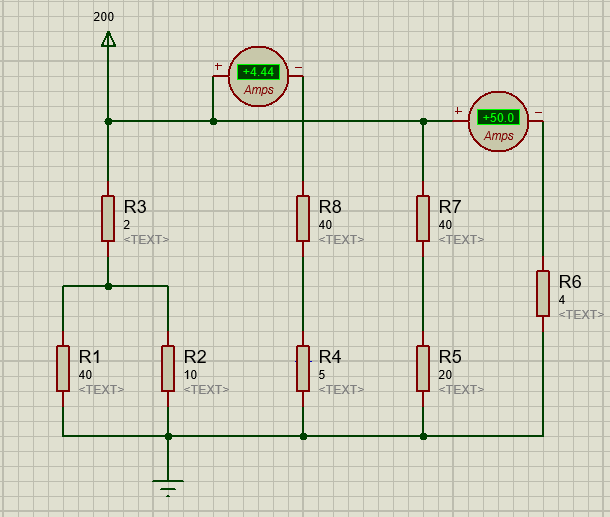

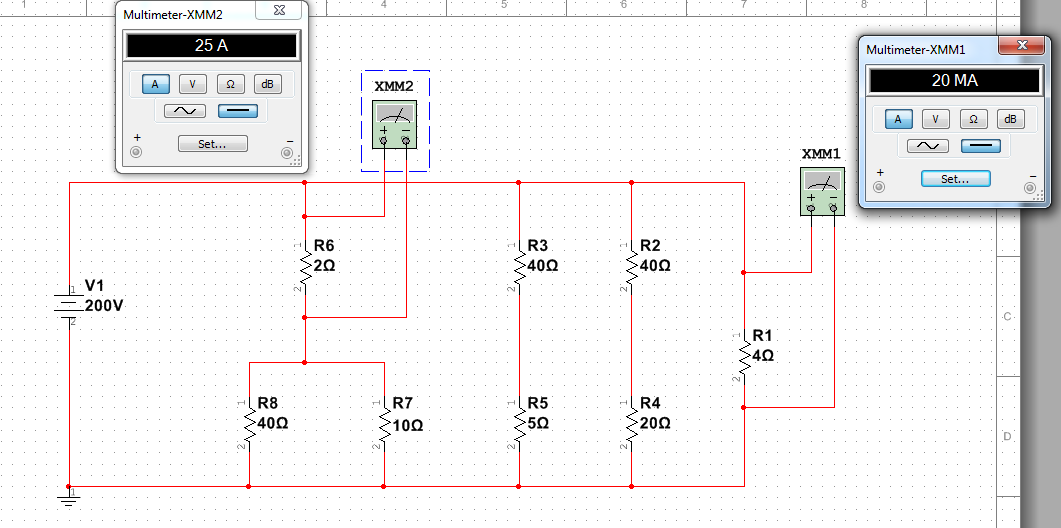

I am trying to simulate the attached circuit but I am getting results that I cannot interpret. Firstly, what is the 20MA result? If I am not wrong it should be 50A. Secondly, I think that I should get 20A from R6 resistor. Does anyone know why I am facing this controversy?

P.S. The total resistance which I manually calculate is equal with the software results. It is equal to 2.553Ω.


Attachments

  • PROBLEM.png
    47.6 KB · Views: 193
