Eaglegp

New Member

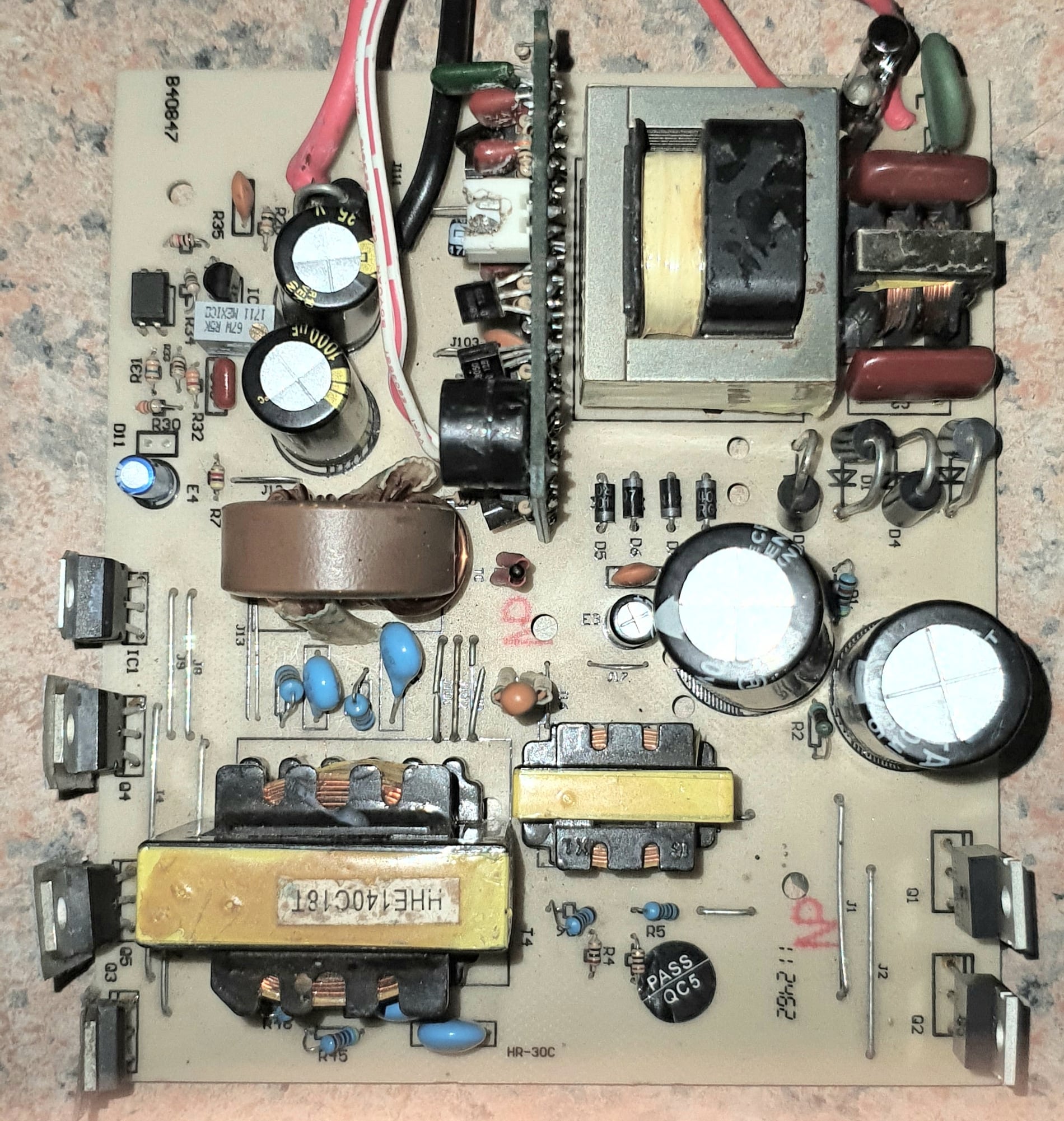

Hi, hope everyone is good and well, I cant get hold of a schematic, please pic attached, anyone have a clue on what's missing on the circuit D11 next to the blue capacitor


Attachments

  • 20200324_232818-min.jpg
    570.9 KB · Views: 106
There is nothing missing (unless you've desoldered it yourself), just the manufacturer using the same template for several models.

The diode symbol is shown on the silkscreen for the diodes which are installed, but only an outline for "D11".

Hi, hope everyone is good and well, I cant get hold of a schematic, please pic attached, anyone have a clue on what's missing on the circuit D11 next to the blue capacitor

Post a photo of the back side of the board where D11 is located. Was anything ever soldered there or is there just a ring of clean solder on the pad like a donut or is there evidence of a part being there at some time?
