FireAce New Member Sep 15, 2010 #1 Hey guys, need a pinout for the IRF4905 P-channel MOSFET. Laying it on its back, what exactly is the pinout? Thanks
Hey guys, need a pinout for the IRF4905 P-channel MOSFET. Laying it on its back, what exactly is the pinout? Thanks
FireAce New Member Sep 15, 2010 #4 Non of the data sheets had direct info. Tried before I posted. I did find 2 results with google pics. Appears to be G D S Will find out tomorrow when I get the remainder of needed resistors and complete the project.
Non of the data sheets had direct info. Tried before I posted. I did find 2 results with google pics. Appears to be G D S Will find out tomorrow when I get the remainder of needed resistors and complete the project.
MikeMl Well-Known Member Most Helpful Member Sep 15, 2010 #5 The package outline and pin out is on the data sheet I referenced.

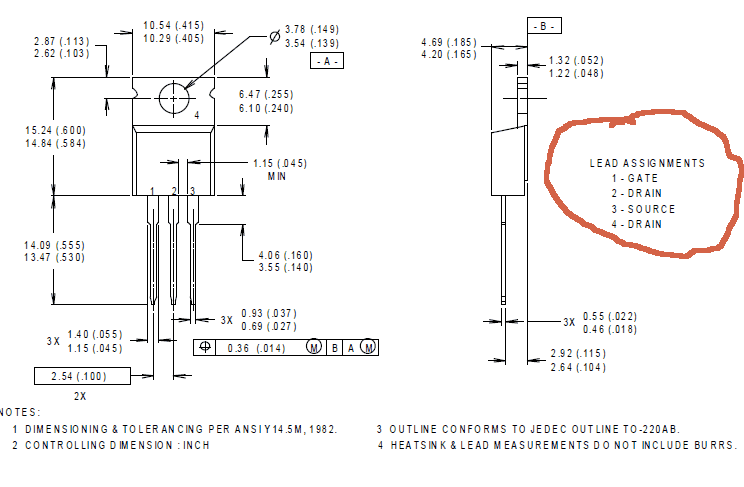

Boncuk New Member Sep 16, 2010 #6 Hi FireAce, I hope this is clear enough. Regards Boncuk Attachments IRF4905.gif 21.1 KB · Views: 13,817
FireAce New Member Sep 16, 2010 #7 Thanks Boncuk, that is what I found, so I'm good. Mike, the data sheet you linked to was unclear to me. It shows the pinout as it would appear in a circuit. I needed to know which pin on the MOSFET was what, BUT I just noticed it in the small print towards the bottom. Easy to miss. Thanks Last edited: Sep 16, 2010
Thanks Boncuk, that is what I found, so I'm good. Mike, the data sheet you linked to was unclear to me. It shows the pinout as it would appear in a circuit. I needed to know which pin on the MOSFET was what, BUT I just noticed it in the small print towards the bottom. Easy to miss. Thanks
