How would you select an 'ignition coil' ?

Discussion in 'General Electronics Chat' started by Externet, Jan 5, 2018.

  1. dknguyen

    dknguyen Well-Known Member

    Joined:
    May 6, 2006
    Messages:
    7,624
    Likes:
    166
    Get the store to respool it for you in a specific way.

    Also, pretty sure in many spools the other end of the wire is in the middle

  2. ChrisP58

    ChrisP58 Well-Known Member

    Joined:
    Apr 27, 2012
    Messages:
    1,176
    Likes:
    148
    Location:
    Provo, Utah, USA
    If you wind something up yourself, you'll need to segment the the winding onto sections like chemelec showed in post #19.

    Otherwise you'll get internal arcing.

  3. chemelec

    chemelec Well-Known Member

    Joined:
    Apr 4, 2004
    Messages:
    2,174
    Likes:
    81
    Location:
    Hedley, B.C. Canada

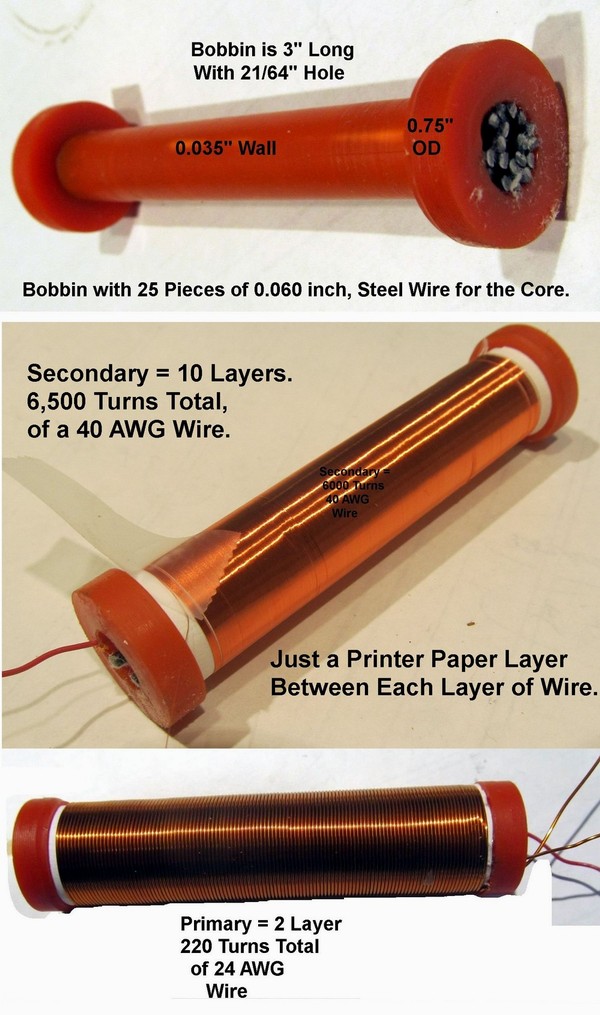

    Wind-Coil-1b.JPG Winding a Coil.
    Ideally it should be Potted in transformer Oil.
    NEVER Operate a Car Coil WITHOUT A SPARK GAP OR A LOAD.

    This Coil in Operation.

    Last edited: Jan 11, 2018
  4. dave miyares

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    2
    Likes:
    -10
  5. Externet

    Externet Active Member

    Joined:
    Nov 14, 2006
    Messages:
    859
    Likes:
    30
    Location:
    Mideast U.S.
    Nice!, chemelec. But have no winding equipment.
    Only the secondary is what I would need. 2 pieces. About 10K turns. :oops:
    Will canibalize generic ignition coils... Went to Autozone, O'rileys, Napa, mechanic shops and... surprise ! Not stocked any more unless fancy 'performance' 'racing' types at $50. Modern times just passed me. Fast.

  6. chemelec

    chemelec Well-Known Member

    Joined:
    Apr 4, 2004
    Messages:
    2,174
    Likes:
    81
    Location:
    Hedley, B.C. Canada
    10,000 Turns wouldn't do much for a HV Output.

    Was that coil you took apart, OIL Filled?


    There are many of these Older Car Coils on ebay.com.
    Usually around $15.00 Plus Shipping cost.
    https://www.ebay.com/itm/UNIVERSAL-...hash=item1a10bc7819:m:mcIxVV9k2VC84b9bqRMpp1Q

    I make my Bobbins on my Metal Lathe, and I also Wind the coils on it at a High Speed.
    I have a Digital Counter on it, so I can accurately count the Turns.

    Want to TALK, Send me your Phone Number.
    The USA is a Free call for me.

    Last edited: Jan 12, 2018
  7. OlPhart

    OlPhart Member

    Joined:
    Feb 22, 2011
    Messages:
    339
    Likes:
    8
    Location:
    SW Michigan (USA)
    I agree with buying a performance engine ignition coil.
    I Guarantee that with the correct firing pulse circuit, it Ain't No 1200 Volts.
    Maybe with a steady state sine wave, but I'm talking hard core shunted primary field collapse.
    P.S. Do Not check it with body parts... it HURTS (BTDT 2 MT). <<<)))

  8. dave miyares

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    2
    Likes:
    -10
  9. chemelec

    chemelec Well-Known Member

    Joined:
    Apr 4, 2004
    Messages:
    2,174
    Likes:
    81
    Location:
    Hedley, B.C. Canada
    Olphart, He is NOT Using this as a Car Coil.
    He will Take it Apart as he Only wants the High Voltage Winding, for NON-HV Purposes.

  10. OlPhart

    OlPhart Member

    Joined:
    Feb 22, 2011
    Messages:
    339
    Likes:
    8
    Location:
    SW Michigan (USA)
    WOW, did I misinterpret the intended purpose (or was it somewhat obtuse?).
    I'm now clueless of intent, is it a Big choke?, magnetic field?
    Since I don't get it, I'm Out... GFL <<<)))

  11. chemelec

    chemelec Well-Known Member

    Joined:
    Apr 4, 2004
    Messages:
    2,174
    Likes:
    81
    Location:
    Hedley, B.C. Canada
    POST #6, Am building a differential gradiometer

    He Just wants a LOT OF TURNS Of Small Wire.

  12. OlPhart

    OlPhart Member

    Joined:
    Feb 22, 2011
    Messages:
    339
    Likes:
    8
    Location:
    SW Michigan (USA)
    Ok, had to look that up "gradiometer" wasn't familiar with term. (kinda vague term to me...)
    So, ignorance query -- is a wire coil as sensor better than So Many hall effect based field strength sensors?
    Not being facetious, just "ignorant" Tnx <<<)))

    P.S. Maybe the difference is an "averaging" aspect to a wire coil, that a hall would "micro measure"?

    P.P.S. maybe a high voltage small relay coil ?

    Last edited: Jan 17, 2018
  13. chemelec

    chemelec Well-Known Member

    Joined:
    Apr 4, 2004
    Messages:
    2,174
    Likes:
    81
    Location:
    Hedley, B.C. Canada
    There are Pros and Cons, Verses Hall Effect and using Coils.

    He was asking me to wind him Two, 10,000 Turn Coils with 40 AWG Wire on 1/2 inch ID, PVC Pipe (20 CM Winding Length)
    But they had to be IDENTICAL.
    I told him I could come Close, But not really Absolutely IDENTICAL.

    So he was going to buy two car coils and take them apart to try them.
    I Seriously DOUBT they will be Identical.

  14. OlPhart

    OlPhart Member

    Joined:
    Feb 22, 2011
    Messages:
    339
    Likes:
    8
    Location:
    SW Michigan (USA)
    That and Good Luck cutting open an ignition coil and Not Destroying the primary winding (it's on the outside (IIRC)).

    ARF... 40 AWG and an even distribution, across ~ 8 inches ?? A tip of My cap..

    I suspect if OP Really described the application, a Much Better answer would be evident.

  15. chemelec

    chemelec Well-Known Member

    Joined:
    Apr 4, 2004
    Messages:
    2,174
    Likes:
    81
    Location:
    Hedley, B.C. Canada
    I can Easily Wind the Coil with 40 AWG.
    I have a Digital Turns counter on my Metal Lathe and can Come Very Close to Perfect layers.
    (I Wound One Layer to see if I could do it.)
    10,000 Turns Would work out to 5 Layers with a layer of paper between wire layers.

  16. OlPhart

    OlPhart Member

    Joined:
    Feb 22, 2011
    Messages:
    339
    Likes:
    8
    Location:
    SW Michigan (USA)
    Again, a Hat tip to you. I'm dubious dealing with <32 AWG stuff.
    I have a turns counter on my lathe, it's the gauge I'd goof up on.

    Oh well, if OP doesn't reveal nature of measurement needed, he'll get proportional results.
    TFB... <<<)))

  17. chemelec

    chemelec Well-Known Member

    Joined:
    Apr 4, 2004
    Messages:
    2,174
    Likes:
    81
    Location:
    Hedley, B.C. Canada
    Look at My Picture on Post 23.
    "Middle Picture wound with 40 AWG".
    Slight Gap near Beginning and end, No Overlaps and Almost Perfect.

  18. gary350

    gary350 Well-Known Member

    Joined:
    Dec 28, 2005
    Messages:
    1,200
    Likes:
    60
    Location:
    Murfreesboro, TN 37129 USA
    An ignition coil from an old vehicle like a 1968 Chevy truck will give you a 1/4" to 3/8" spark on 12 volts if you can adjust the Hz with a 555 timer to get maximum output. You can still get replacement ignition coils at Auto Zone and O'Reilly auto parts. These are not made for high RF efficiency drops off at about 5K.
