how to diode spice model in proteus

[okbro]

Does anybody know how to attach spice model file for diode in proteus. I am trying to make a new 1N5817 component with spice file which i have already downloaded the file 1n5817.lib and put in the library folder.
From the help file in proteus it says to create PRIMITIVE and SPICEMODEL properties as shown below.

And I have added the properties as shown below while creating the diode part,

But when i run simulation it shows error:



[Ian Rogers]

In the simulation help file it shows exactly how to do this.. You will need to be able to read the spice file to get the exact model to reference.



[tepalia02]

Not sure if it is gonna help. This write-up shows how to Import PSpice models into Proteus. This is not exactly about diodes though.

How to import PSpice Models into Proteus: A Step-by-Step Guide - YouSpice

How to import PSpice models into Proteus for accurate circuit simulations. Step-by-step guide to import PSpice models into Proteus.

www.youspice.com



[okbro]

In the simulation help file it shows exactly how to do this.. You will need to be able to read the spice file to get the exact model to reference.

this is what i referenced to and mentioned above, it is not working. there is one example with transistor and it says diode should be similarly configured so i followed it as shown in my post above but i don't what to put in the two properties SPICEMODEL and PRIMITIVE. For PRIMITIVE in the help file for 2N2222 transistor it says to put PRIMITIVE=ANALOGUE,NPN but for diode i dont know what to put, so i put PRIMITIVE=ANALOGUE,D guessing D is for diode. And for SPICEMODEL i wrote DI_1N5817,1N5817.LIB because the spice file has this:

and its not working



[okbro]

Not sure if it is gonna help. This write-up shows how to Import PSpice models into Proteus. This is not exactly about diodes though.

How to import PSpice Models into Proteus: A Step-by-Step Guide - YouSpice

How to import PSpice models into Proteus for accurate circuit simulations. Step-by-step guide to import PSpice models into Proteus.

www.youspice.com

i know this already but i want to build permanent model for the diode



[Ian Rogers]

have you the spice library? I would like to try and make one.



[okbro]

have you the spice library? I would like to try and make one.

attached is the file, i changed the file extension to .LIB but .TXT should also work the same way.



[Ian Rogers]

Yep same as I have done... I asked Ettore at Labcenter and he sent this.



[okbro]

Yep same as I have done... I asked Ettore at Labcenter and he sent this.

thank you, but i cannot open it because it is the latest version, i have older version of proteus.



[Ian Rogers]

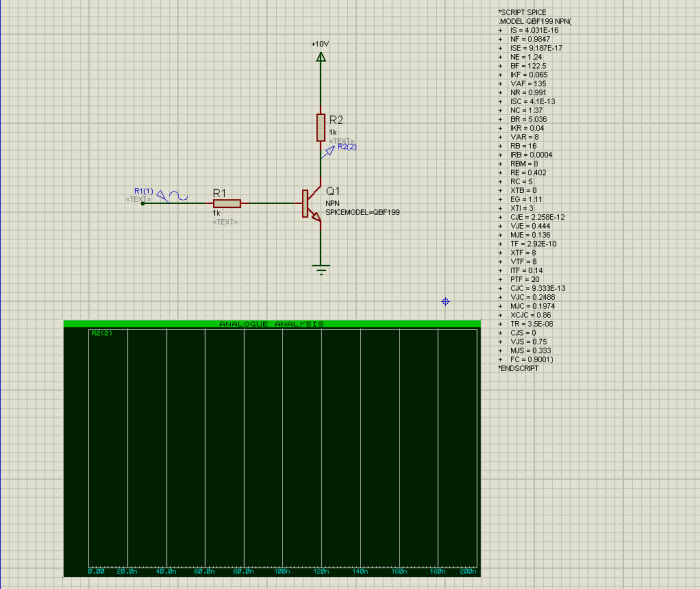

The text file has to be in the project directory

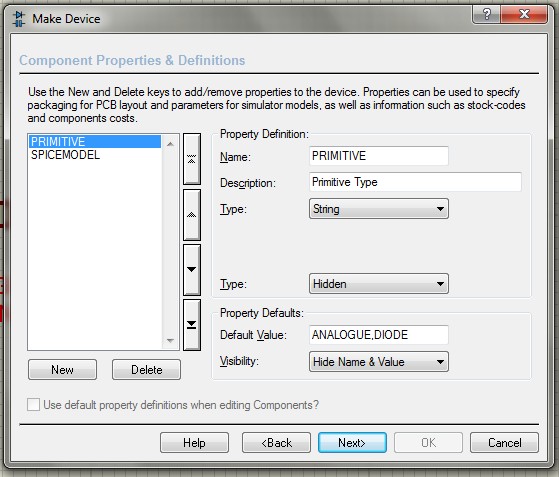

But here are the properties



[okbro]

The text file has to be in the project directory
But here are the properties
View attachment 139119

hi Ian,

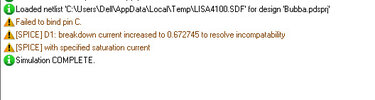

I thought that this is now solved but I did exactly as you have posted but somehow i get the following error.



[Ian Rogers]

Its not an error.. It is just telling you that one of the parameters has to be slightly modified.
In this case the breakdown current..

The cathode isn't specified??

When I make a part I grab a close match first... Starting from scratch is problematic.

I do not get the pin bind error on mine..
