how do u test a crystal w/ multimeter

T

the judge

New Member

• Oct 27, 2009

• #1

i get most of my components from old junk and i have a lot of crystals, but i couldn't find any datasheets for any of them i have a multimeter with a frequency setting, can i use that to test it and if so, how? also is there any way of finding out what voltage or current i should or can use?



blueroomelectronics

Well-Known Member

• Oct 27, 2009

• #2

You need to build an oscillator.



B

bountyhunter

Well-Known Member

• Oct 27, 2009

• #3

You need an oscillator circuit to test crystals and a very accurate frequency meter. I believe there are dedicated crystal testers around, they are not typical meters in most shops.



T

the judge

New Member

• Oct 27, 2009

• #4

is the oscillator circuit to test it relatively cheap/simple? if so, can someone post it please?



K

kchriste

New Member

Forum Supporter

• Oct 27, 2009

• #5

The oscillator will be different for different crystals. It depends on frequency and the cut of the crystal. Hard to give a simple answer, but a simple oscillator can be made with CMOS or TTL logic gates which should work with typical microprocessor type crystals.



B

bountyhunter

Well-Known Member

• Oct 27, 2009

• #6

the judge said:

is the oscillator circuit to test it relatively cheap/simple? if so, can someone post it please?

Click to expand...

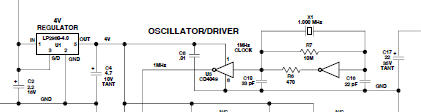

Here is an example I used in my scope calibrator.



Attachments

• Xtal osc.jpg

  11.6 KB · Views: 1,471
