help to find a relay equivalent

E

eduardo_gj1

Member

• Nov 24, 2020

• #1

Hi everyone, I hope you can help me with this relay. I write the ralay data

JZX-18ff
yl-440-3
5A 250vac
5A 28vdc
dc 12v

this relay is for a Teufel cc-200sw subwoofer

here the schematic

http://www.relaymall.co.kr/pdf/JZX-18F.pdf



ronsimpson

Well-Known Member

Most Helpful Member

• Nov 24, 2020

• #2

eduardo_gj1 said:

28vdc

Click to expand...

24vdc!



E

eduardo_gj1

Member

• Nov 24, 2020

• #3

I mean a store where I can find it, I only find this type of relay in China, so I doubt its quality, that's why I look for some other options



rjenkinsgb

Well-Known Member

Most Helpful Member

• Nov 24, 2020

• #4

It's a "Four pole cradle relay", PCB pins with a 12V coil, from what you say.

Something like this should be fine:

55.14.9.012.0000 | Finder PCB Mount Power Relay, 12V dc Coil, 7A Switching Current, 4PDT | RS

uk.rs-online.com

Or you could fit a socket and use the commoner plug-in style:

PY14-02 | Omron 14 Pin 250V ac PCB Mount Relay Socket, for use with MY4IN, MY4IN1, MY4IN1-D2, MY4IN-CR, MY4IN-D2, MY4N, MY4N1, | RS

uk.rs-online.com

MY4IN DC12(S) | Omron Plug In Power Relay, 12V dc Coil, 5A Switching Current, 4PDT | RS

uk.rs-online.com

The plug-in style are extremely common, from many makers; direct PCB pin are available but much less choice.

Any big electronics supplier or distributor should have the ones above or equivalents; eg. the Omron plug-in one from Mouser:

https://www.mouser.co.uk/ProductDetail/Omron-Automation-and-Safety/MY4N-DC12S?qs=sGAEpiMZZMtGt%252Bn33CgIP0xxuRB1DNXOkL2KdSeiMfQ%3D

The PCB pin one, on ebay:

55.14.9.012.0000, Finder 4PDT relay, new | eBay

Find many great new & used options and get the best deals for 55.14.9.012.0000, Finder 4PDT relay, new at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk



E

eduardo_gj1

Member

• Nov 24, 2020

• #5

thanks a lot for your help, that its the big problem, its 3 pole

JZX-18FF (YL-440-3)Relay DC12V8 pin(new original)

JZX-18FF (YL-440-3)Relay DC12V8 pin(new original) on sale,buy cheap JZX-18FF (YL-440-3)Relay DC12V8 pin(new original) from the best shopping agent yoycart.com

www.yoycart.com

it is the same as removed from the subwoofer



E

eduardo_gj1

Member

• Nov 24, 2020

• #6

Finder 55.13.8.230.0000 Steckrelais 230 V/AC 10 A 3 Wechsler 1 St. kaufen

Schnelle Lieferung ✓ Große Auswahl an %brandid% Produkten » Jetzt einfach bestellen: Finder 55.13.8.230.0000 Steckrelais 230 V/AC 10 A 3 Wechsler 1 St.

www.conrad.de

could this one be a good replacement?



rjenkinsgb

Well-Known Member

Most Helpful Member

• Nov 24, 2020

• #7

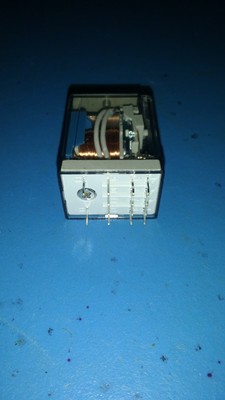

OK, I saw the 4 pole one in the picture.

The one you linked to has a 230V AC coil; the part number for the 12V DC three pole one is 55.13.9.012.0000

55.13.9.012.0000 | Finder PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, 3PDT | RS

uk.rs-online.com

Those do seem fairly easy to get - RS, Farnell, TME, a couple on ebay.



E

eduardo_gj1

Member

• Nov 24, 2020

• #8

ok again thanks

this one?

55.13.9.012.0000 FINDER - Relay: electromagnetic | 3PDT; 12VDC; industrial; Series: 55.13; 55.13.9.012.000 | TME - Electronic components

FINDER 55.13.9.012.0000 | Relay: electromagnetic; 3PDT; 12VDC; industrial; Series: 55.13 - This product is available in Transfer Multisort Elektronik. Check out our wide range of products.

www.tme.eu



rjenkinsgb

Well-Known Member

Most Helpful Member

• Nov 24, 2020

• #9

That's the one, as far as I can tell; three pole, PCB pins, 12V DC coil.

You can verify the pin spacing against your original, from the data sheet.



E

eduardo_gj1

Member

• Nov 24, 2020

• #10

ok i will do it right now, thanks for your help.
