[Help]3phase graphic using excel

Discussion in 'Members Lounge' started by Silent_Sense, Mar 31, 2009.

  1. Silent_Sense

    Silent_Sense New Member

    Joined:
    Mar 21, 2009
    Messages:
    8
    Likes:
    0
    hello guys, i need ur help again hehe..
    can u give me some information or something to help me to make 3phase graphic using excel?
    3 sinus graphic in one graphic..
    There are 3 variable (a,b,c)
    my graphic start from 10 degrees(a), so, b will be start from 130degrees, c will be 250degrees..that`s right?
    what i must compare to make it likes sinus graphic?:confused:
    current and load?
    In this case, That degrees using for sign of my graphic that start from 10, 130, and 250 degrees..
    I try to googling..but i can`t..
    So, i try to get information here..
    I love this forum (sure):D
    Thx b4..

    Last edited: Mar 31, 2009
  2. JimB

    JimB Super Moderator Most Helpful Member

    Joined:
    Sep 11, 2004
    Messages:
    6,393
    Likes:
    593
    Location:
    Peterhead, Scotland

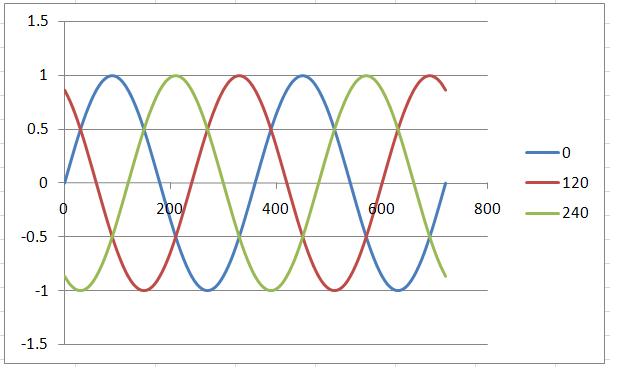

    Like this?


    Attached Files:

  3. Silent_Sense

    Silent_Sense New Member

    Joined:
    Mar 21, 2009
    Messages:
    8
    Likes:
    0
    That`s right..
    but in my case, it`s start from 10degrees (line Blue)-
    130degrees(line red)-
    250degrees(line blue) ..
    can u give me excel file??
    so i can modify that file..
    I using Micrs.Office 07..
    u can send to my email
    matiascst@yahoo.com
    1 again, if i using current and torque to make graphic like that??
    Thx a lot b4..:D

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. JimB

    JimB Super Moderator Most Helpful Member

    Joined:
    Sep 11, 2004
    Messages:
    6,393
    Likes:
    593
    Location:
    Peterhead, Scotland

    OK, lets keep the discussion in the forum.

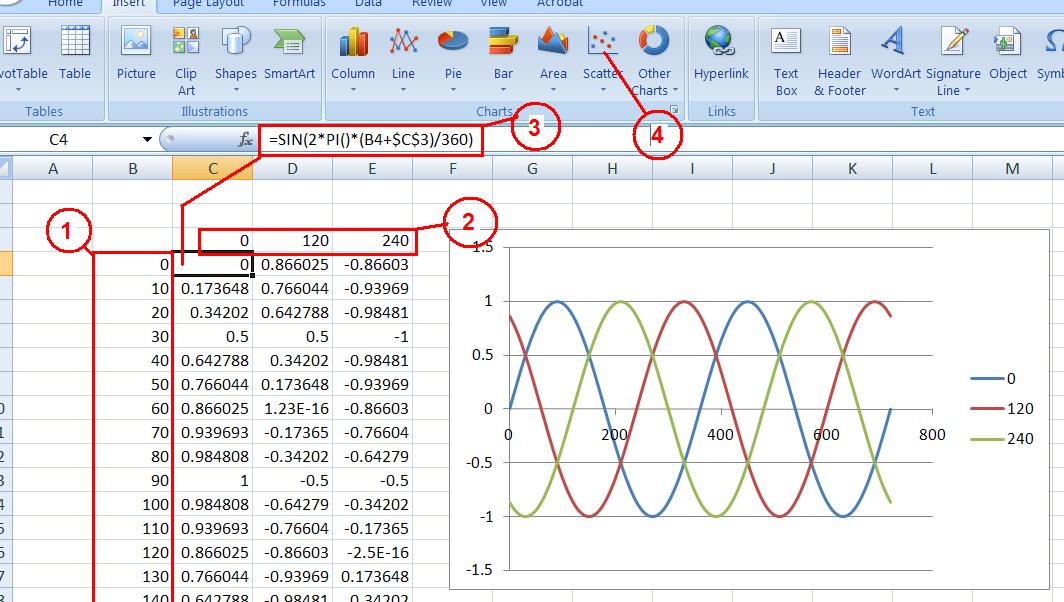

    Refering to the attached screen shot.

    1 Set up a series of data points for the x-axis, I have used 0 to 720 degrees in 10 degree steps.

    2 Set up the phase differences, I used 0, 120 and 240 degrees.
    You can use 10, 130 and 250 if you wish.

    3 Set the formula for the first cell.
    Excel uses radians for the Sin() function, so (2*PI()..../360) converts the degrees to radians.
    B4 the cell with the degrees. (actually it would be better written as $B4.
    $C$3 the cell with the phase difference. The other columns will be $D$3 and $E$3.

    Now copy the formula to the other cells.

    4 Select all four colomns of data and click on the "Scatter" chart icon, in the pop-up box click on the "Scatter with smooth lines" icon.

    Job done! enjoy your pretty picture.

    JimB


    Attached Files:

  6. Silent_Sense

    Silent_Sense New Member

    Joined:
    Mar 21, 2009
    Messages:
    8
    Likes:
    0
    Waw..very cool picture..
    thx a lot sir..
    but how to make pic like this..
    [​IMG]
    when i input a, so b n c can be change..so we have the resultan of that picture..:D
    Hehe..i`m sorry if i many ask to you hehe..
    i just wanna learn more..
