Do anyone know about this device? (B-PS4-1002-OLEKTRON)

Status
Not open for further replies.

Willen

Well-Known Member

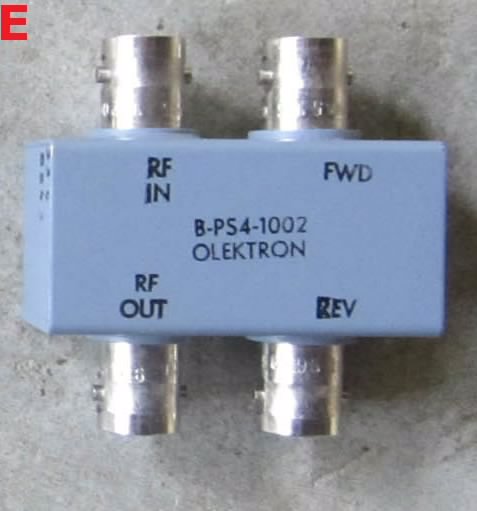

I got these two devices, it has RF IN, OUT, Rev, Fwd so it looks like a ready made reflection meter and SWR meter for RF transmitters. But I know nothing and getting problem to get information about it in the internet. If I could get some datasheet or app note, it would be nice.


Attachments

  • B-PS4-1002 OLEKTRON.jpg
    B-PS4-1002 OLEKTRON.jpg
    34.9 KB · Views: 142
look it up on google.
It is a 115 to 400 MHz directional coupler. Plenty on ebay for $50.
Being BNC connectors is probably 50 ohm.
hope this helps.

I agree it is a directional coupler.

The manufacturer Olektron is now part of Crane
Looking through their website, I cannot find any reference to this item. My best guess is that it is now obsolete.

If you want some insight into the working of directional couplers, have a look here:

JimB

Hi,
It looks like it's a factory made SWR meter as I uploaded a diagram below. Bi-directional couplers sounds little complicated.
