Digital thermometer with icl7107 and lm35(showen in three 7-segment displays)

Status
Not open for further replies.

silently

New Member
I have to make the circuit as the hardware application project,
it must show 2 digits and 1 digit after comma(exmple: 22,3).
the proteus similation i made works well but the circuit on the breadboard doesn't work,
and actually at one time i succied to see output when the analog input increases digital output decreases,when the analog input decreases digital output increases.
please heellllp!


Attachments

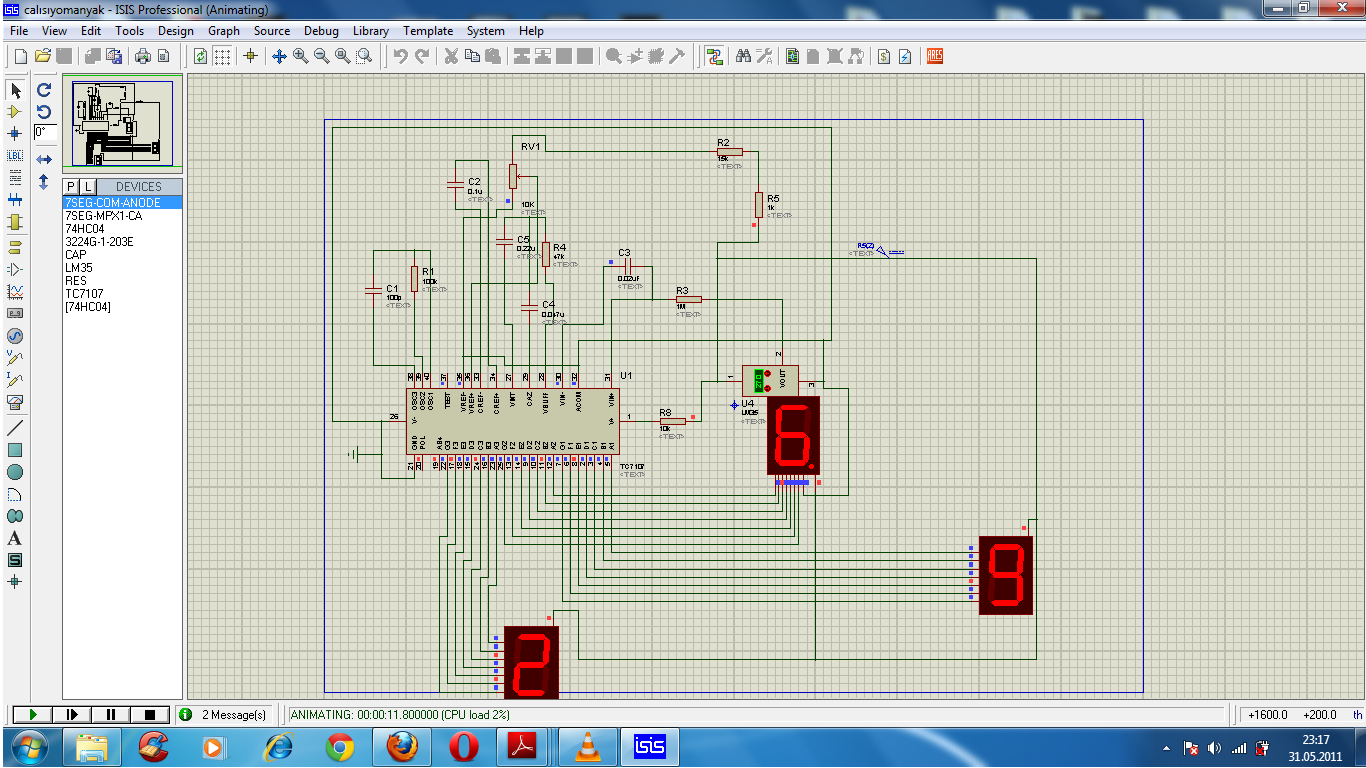

  • working.png
    198.6 KB · Views: 3,265

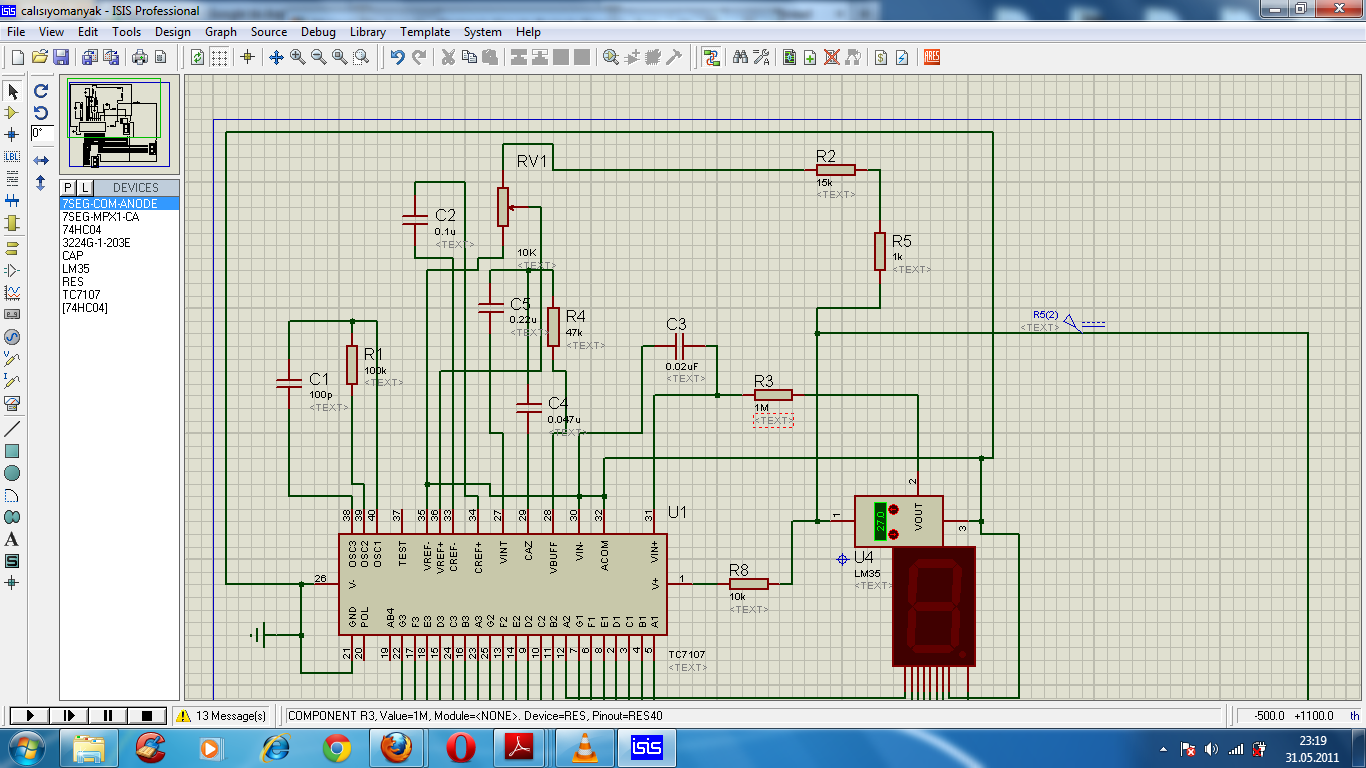

  • 1.png
    222.2 KB · Views: 2,473

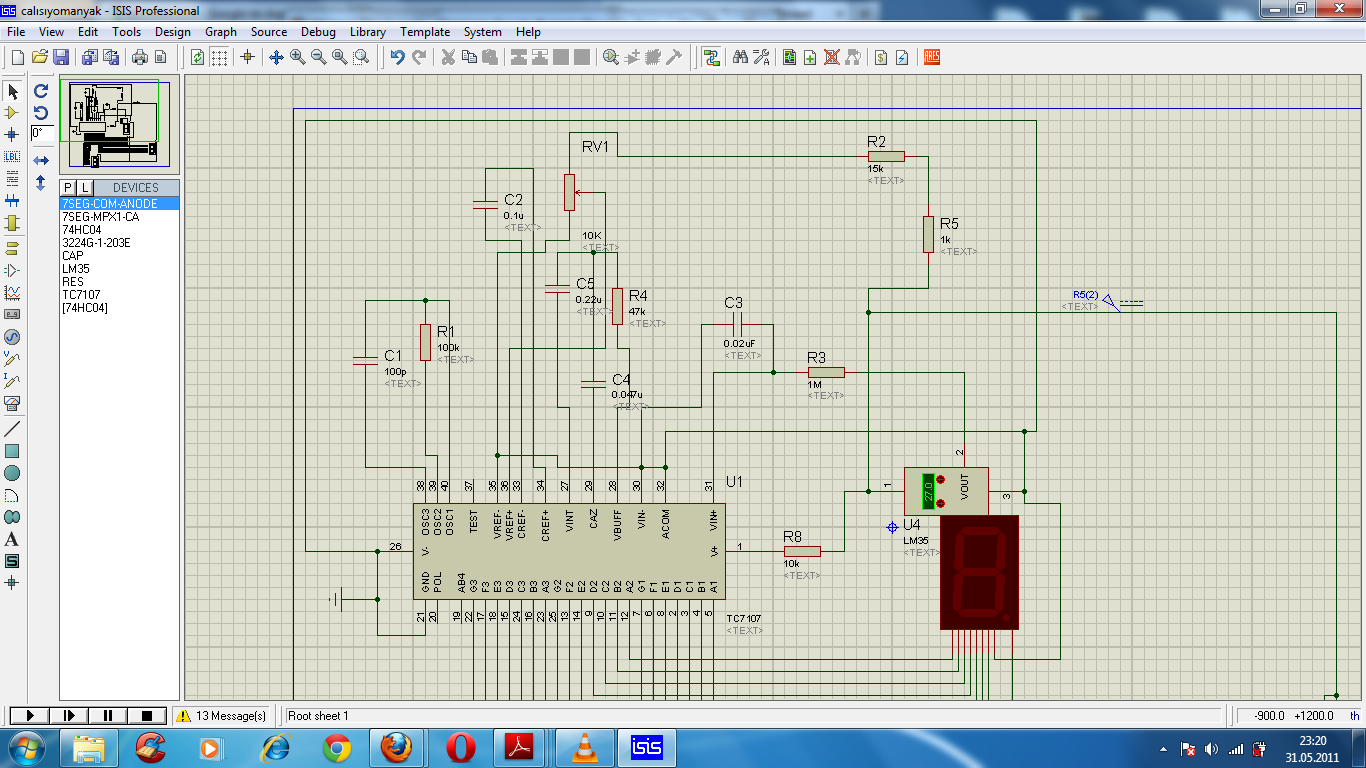

  • 2.png
