Design with Half Bridge Driver

Status
Not open for further replies.

alok1982

Member
Hi all,
I am designing a resonant circuit using IR2104 (Half Bridge Driver).
This IC has total 8 pins in which pin number 2 is IN [Logic input for high and low side gate driver outputs (HO and LO), in phase with HO] and other pin 3 is SD (Logic input for shutdown).
I want to know that which IC i use to give input to the pin IN and SD of IR2104. I don't want to use Microcontroller.

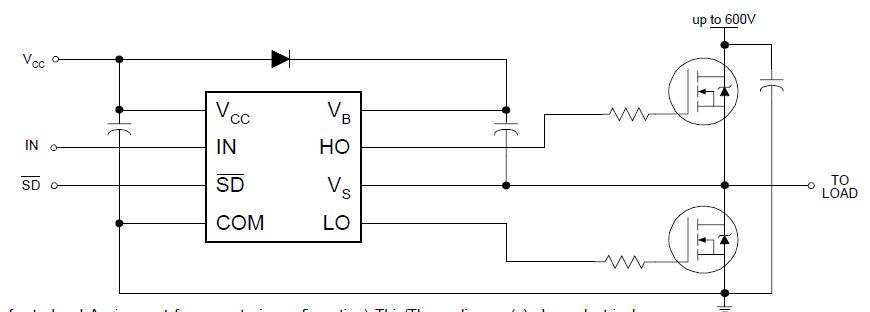

Basic functional block diagram is attached here with for better understanding.

Thanks in advance.


Attachments

  • Basic Functional Diagram - IR2104.JPG
    32.5 KB · Views: 1,530
