Circuit information for Opteon Depict 1 ccd camera

Status
Not open for further replies.

Starman

New Member

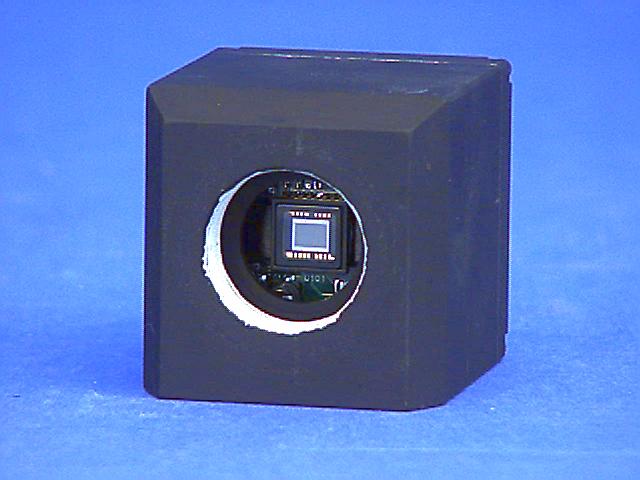

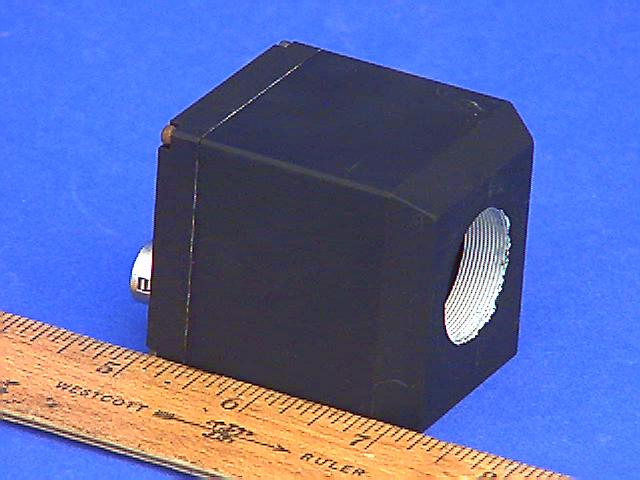

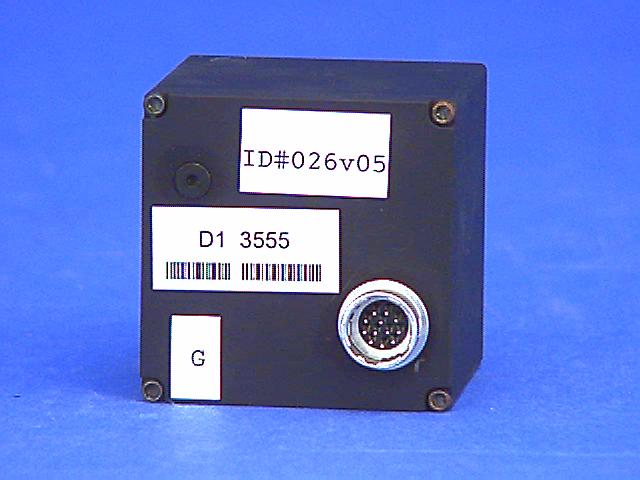

Got a good deal on this camera. The problem is I need some info on wiring diagram. Operation instructions, etc. Plan to see if it can be used on DSO w/12" telescope. The camera was NIB surplus. it has a 3/8" Dia. 12 male pin connector out back. The camera is small like a microsope type camera w/threaded hole in front for possible c-mount of adapter or lens. One of the 3 stacked
circuitboards is marked Opteon Depict 1 rev. 3.2 1999 (0ne marked VT 4300). Any info would be appreciated. Added pics on 8-4-2003 maybe this will help. Thanks
