Bench Power Supply Schematic

Status
Not open for further replies.
R

RIPSAW

New Member
I want to build a 12 volt, 10 amp power supply with voltage and amp meters and possibly current limiting ability. I saw similar circuits in the radio amateur handbook years ago. Please direct me to some schematics that will supply my needs. I don't know enough theory to design my own.

There are lots of them on the net, here are some.

Ante :roll:


Attachments

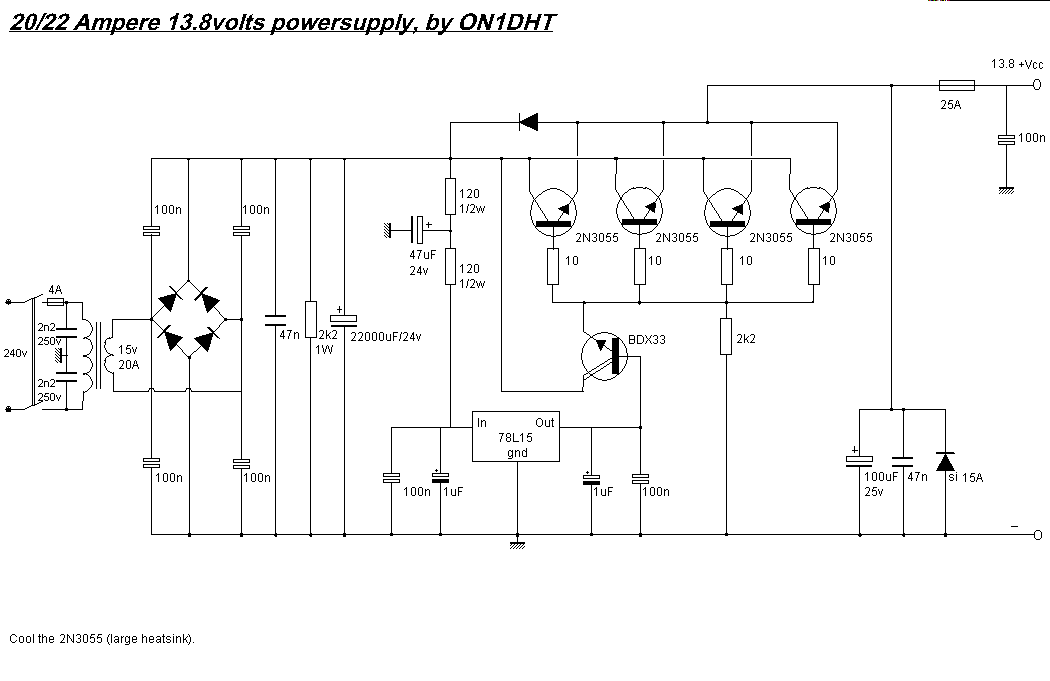

  • 13.8V_20A.gif
    69.7 KB · Views: 810

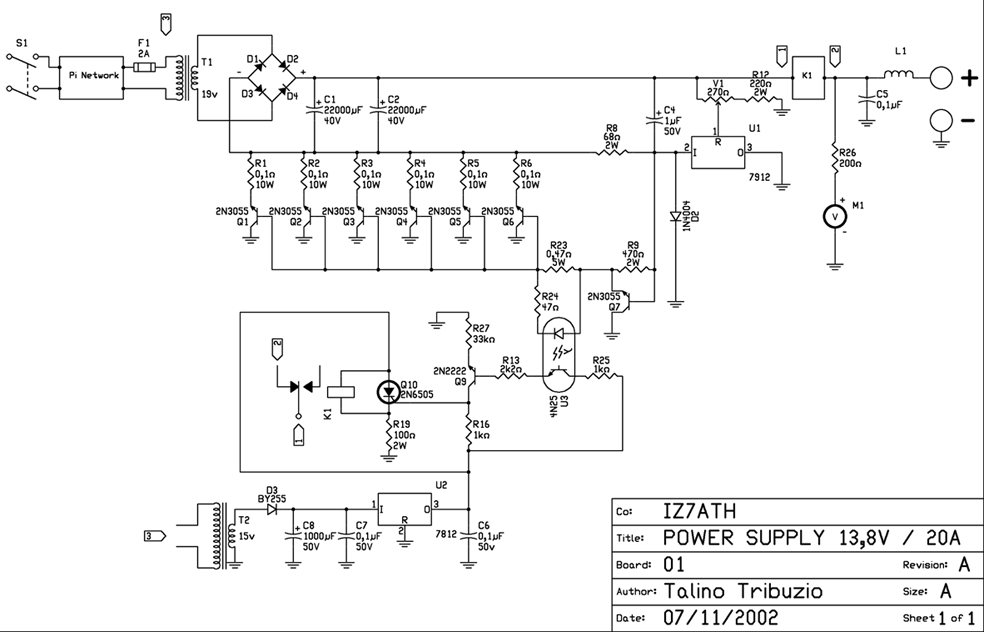

  • 13.8V_20A.gif
