Anyone KNow what Motor this is

Status
Not open for further replies.

seis78

New Member

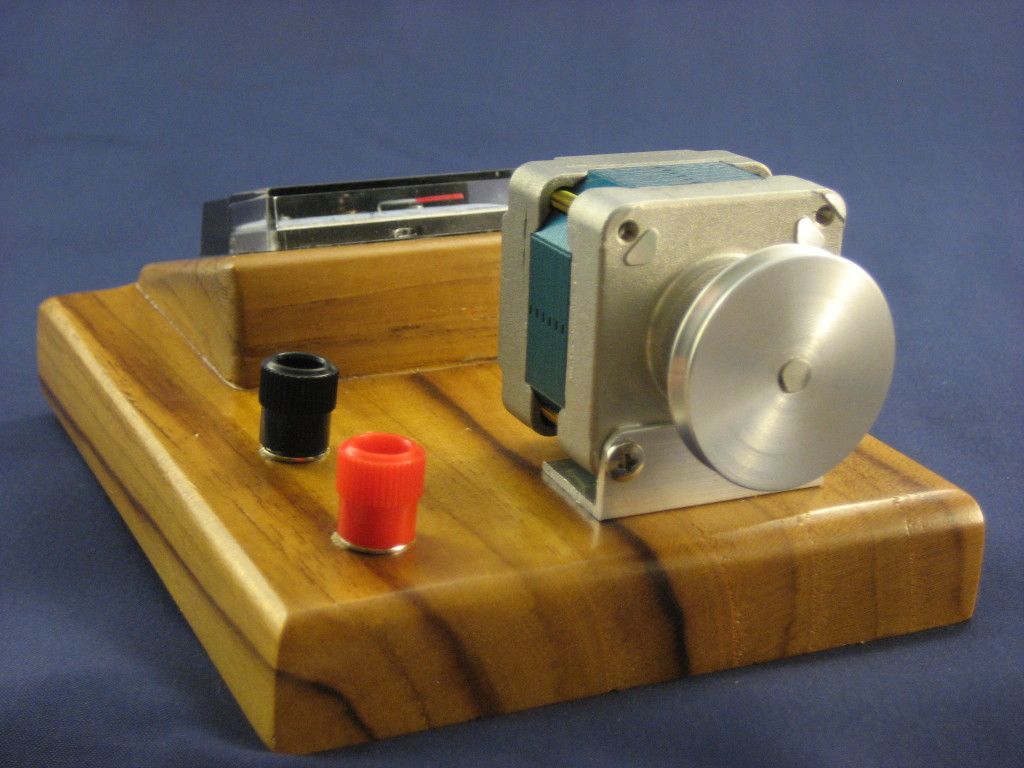

Hello everyone, Does anyone know what stepper motor this is?
Thanks for your help


Attachments

  • IMG_0141.jpg
    166.3 KB · Views: 252
Hello everyone, Does anyone know what stepper motor this is?
Thanks for your help

There is a zillion models and manufactures of stepper motors, it would not be possible to give you a specific model number from just that picture. However it looks like a very standard type that was used to step the heads in 5 inch floppy disk drives.

Lefty

Does anyone know what stepper motor this is?
What makes you think that it is a stepper motor?
It is nicely mounted on a wooden base with a meter and two terminals.
My best guess is that it is a simple DC motor, a stepper motor would require 4 or more connections.

JimB

I just don't know what model it is. I have this stepper motor **broken link removed**
I use it to make generators. I would like to get more power. I can make a trippler, but don't want to loose on amps. So I am seeking a better stepper motor. Any suggestions?? These are ran by Steam engines, stationary so they can't have much torque. Thanks

Yeah it's a NEMA size 17 motor, single stack.

Agree completely. I believe it is a TECO 4H series which I have worked with before. This has obviously been repainted for cosmetic purposes as it comes painted black from the factory.

ID this Motor?

I don't know, but it sure is purdy!:D

Agree completely. I believe it is a TECO 4H series which I have worked with before. This has obviously been repainted for cosmetic purposes as it comes painted black from the factory.
I've searched online for that model and can't find a site. I did find one but the stepping angle is 1.8 Degree. I need somehting with something like 3.9 degree.
Thanks for all your help. I've been working on this for some time now.:)

Why do you need 3.9 degrees? It's a stepping motor, you turn it as many degrees as you need. All the free/hobby/pro CNC software lets you specify variables for steps/inch so it doesn't matter what the motor does.

RB is right, you can make it step at any interval. Sites like these has free software links

**broken link removed**

the stepping angle is not important

Last edited:
RB is right, you can make it step at any interval. Sites like these has free software links

**broken link removed**

the stepping angle is not important

Hello, Why isn't the stepping angle not important? If you can explain this to me that would be great. I used an 1.8 degree angle once and the steam engine just couldn't spin it, too much torque.Thanks for your help

I understand, I was just focusing on the motor id, had not read the use you were giving it. RB & I were just stating that you could use a 1.8 as a 3.9 by programming to spin at that interval. In your case that is not an option since you drive it with a motor. The interval in your case is important, as the more steps, the more internal resistance the motor will have.
I am pretty sure that is a TECO motor, probably an old one of the 4H series.

I'm sorry seis78, I didn't see that it was for a generator. I'd like to see a picture of the setup when you get the steam engine driving a stepper generator.

These are great little generators (ie brushless, good power at low revs, high magnetic fields etc). It's a shame people don't use them for generators more often.
