Analog Max/Min Value or Bi-Level Clamp Circuits 2017-05-01

Status
Not open for further replies.

crutschow

Well-Known Member
Most Helpful Member
crutschow submitted a new article:

Max or Min Value Analog Circuit - Circuit outputs the maximum or minimum value of several analog inputs, depending upon configuration

Occasionally it can be useful to generate only the maximum or minimum output of several analog input signals.
The two simple op amp circuits here perform that function for an arbitrary number of inputs.

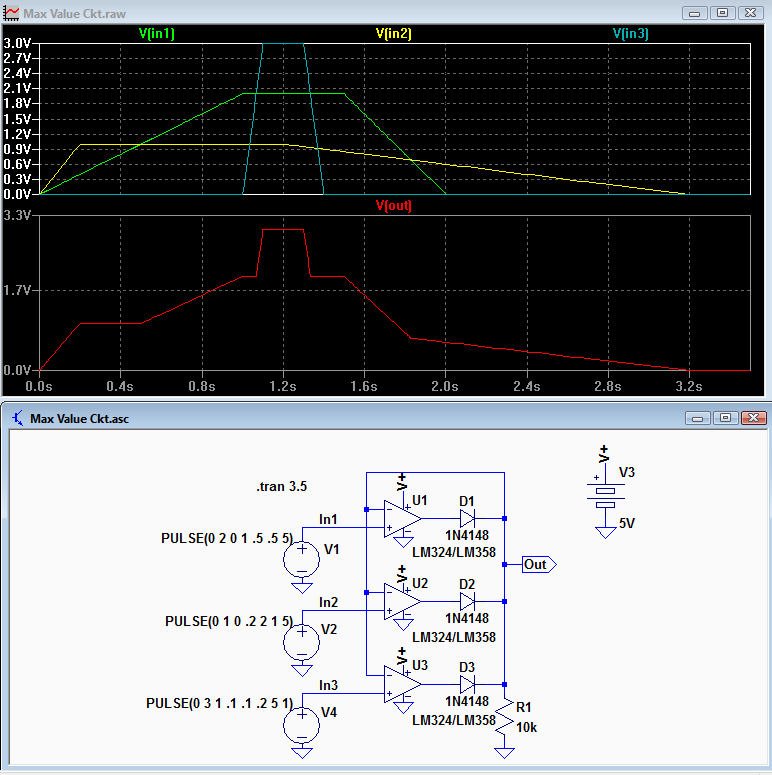

Below is the LTspice simulation for the max value circuit, shown for three inputs.
As can be seen, the output follows the input with the maximum voltage.

View attachment 105837

By reversing the diodes and connecting the output resistor to V+, the circuit becomes a minimum value...

Read more about this article...
