which capacitor current waveform is correct?

Status
Not open for further replies.

PG1995

Active Member
Hi

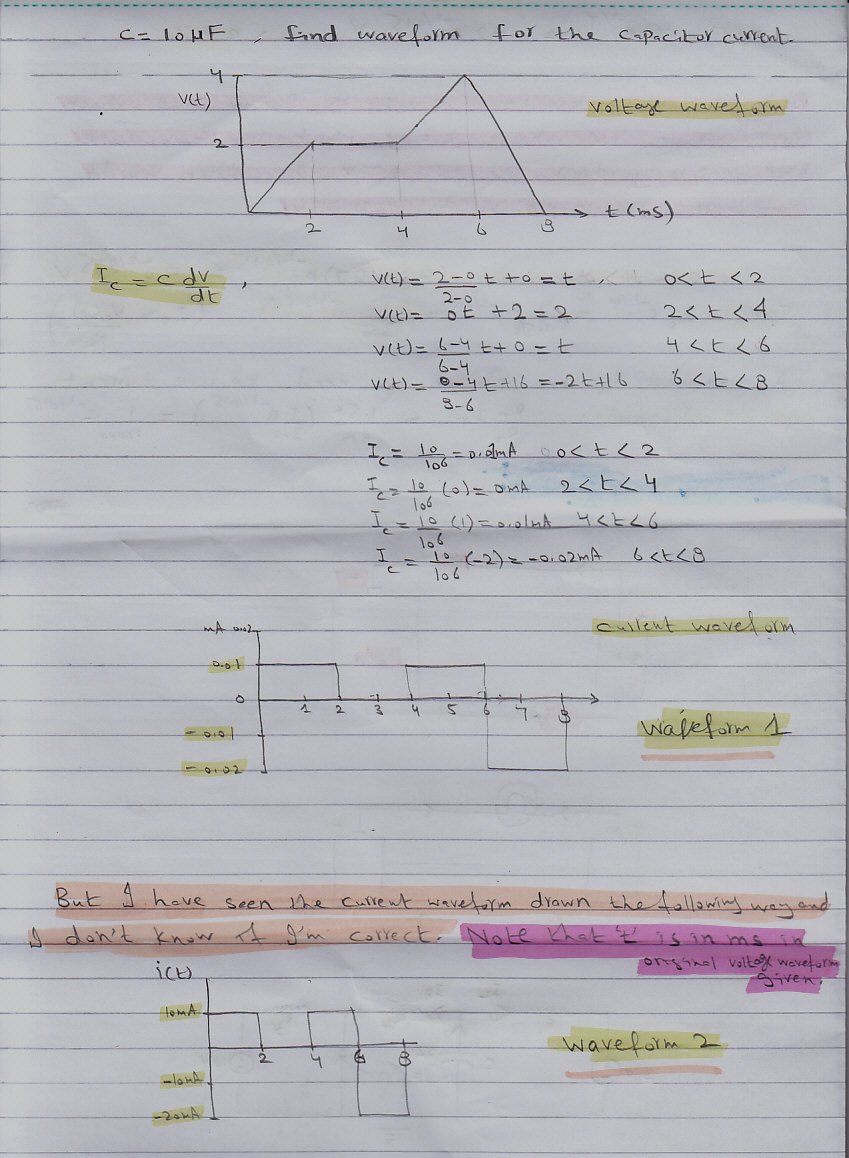

Please have a look on the attachment. Please tell me which current waveform of the two, Waveform 1 or Waveform 2, is correct. Thank you for the help.

Regards
PG


Attachments

  • IMG_0002.jpg
    153.7 KB · Views: 274
Hi

I assume that someone is not in the process of replying. I'm sorry about it but I have solved it. Thanks a lot for giving it a look. Thanks.

Regards
PG

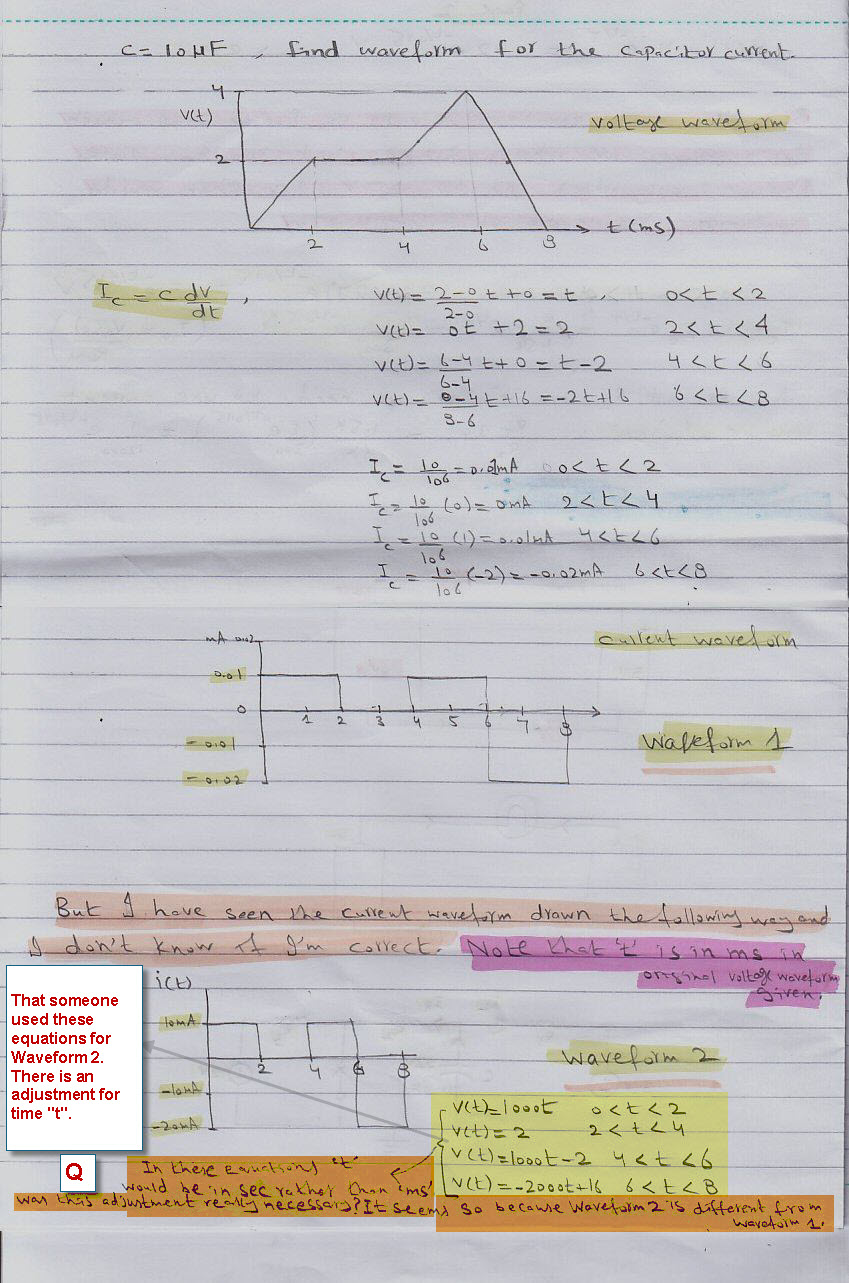

It seems I'm still little confused about the waveform. So, please help me. Please have a look on the attachment. It has my question "Q" at the very bottom.

Regards
PG


Attachments

  • Panoramaf.jpg
    221.3 KB · Views: 283
Hi,

Is that input waveform just a few ramps and horizontal lines?
It's kind of hard to read your writing. If it was typed it would be much easier to help.
