video transmitter- help

bond000

bond000

New Member
hello

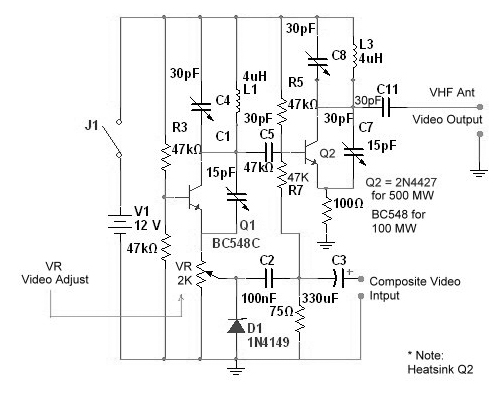

i am trying to build a video transmitter. i am posting the circuit. i have some doubts. the second stage which should be a rf amp,also has a feed back capacitor.is it correct?
and the input signal is applied at the emitter of the first transistor and the base of the second transistor. anything wrong here? please help.


Attachments

  • a-VHF-video-transmitter.jpg
    85.7 KB · Views: 214
Last edited:
