vibration sensor magnetic

Status
Not open for further replies.

sherazi

New Member

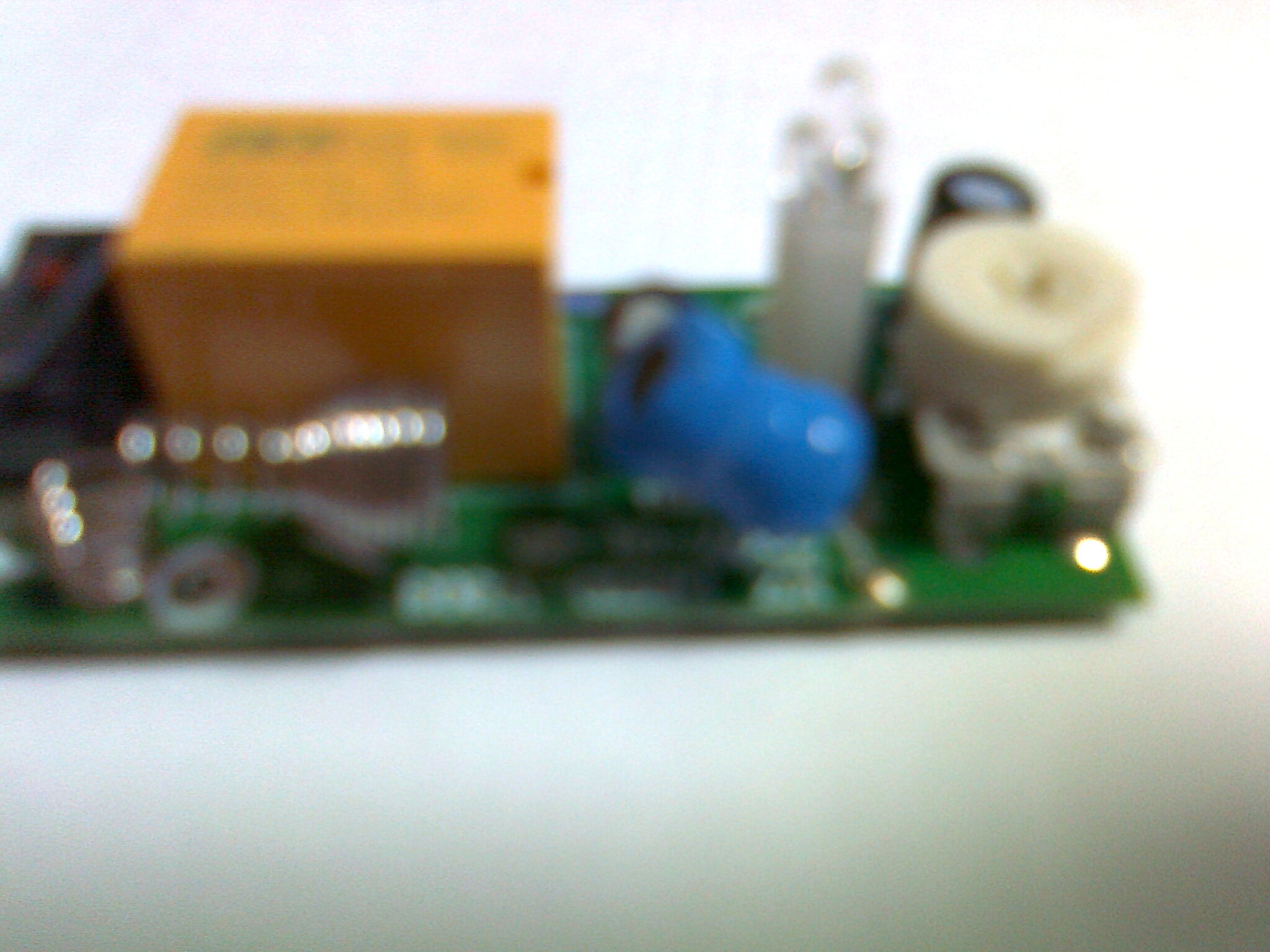

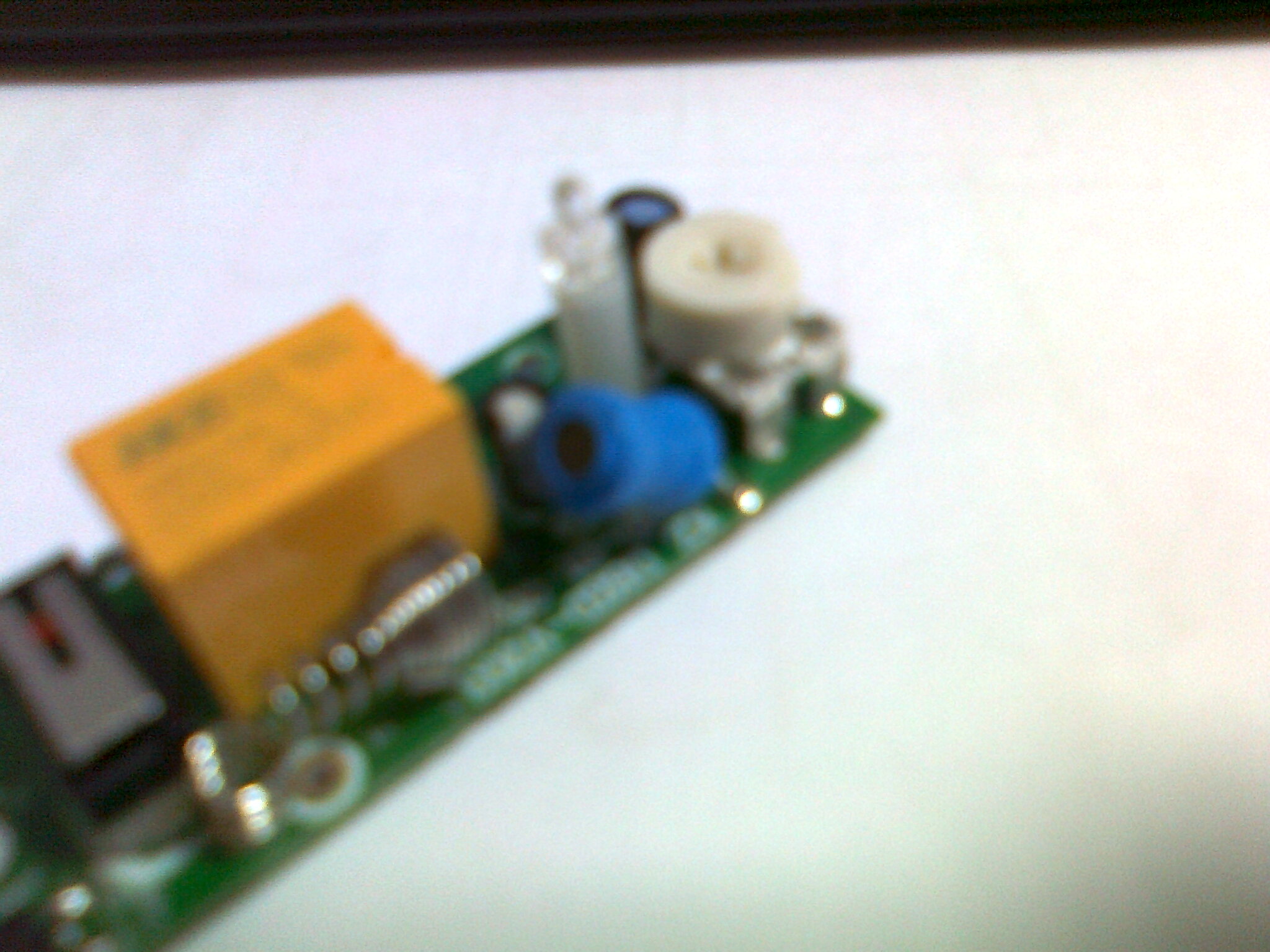

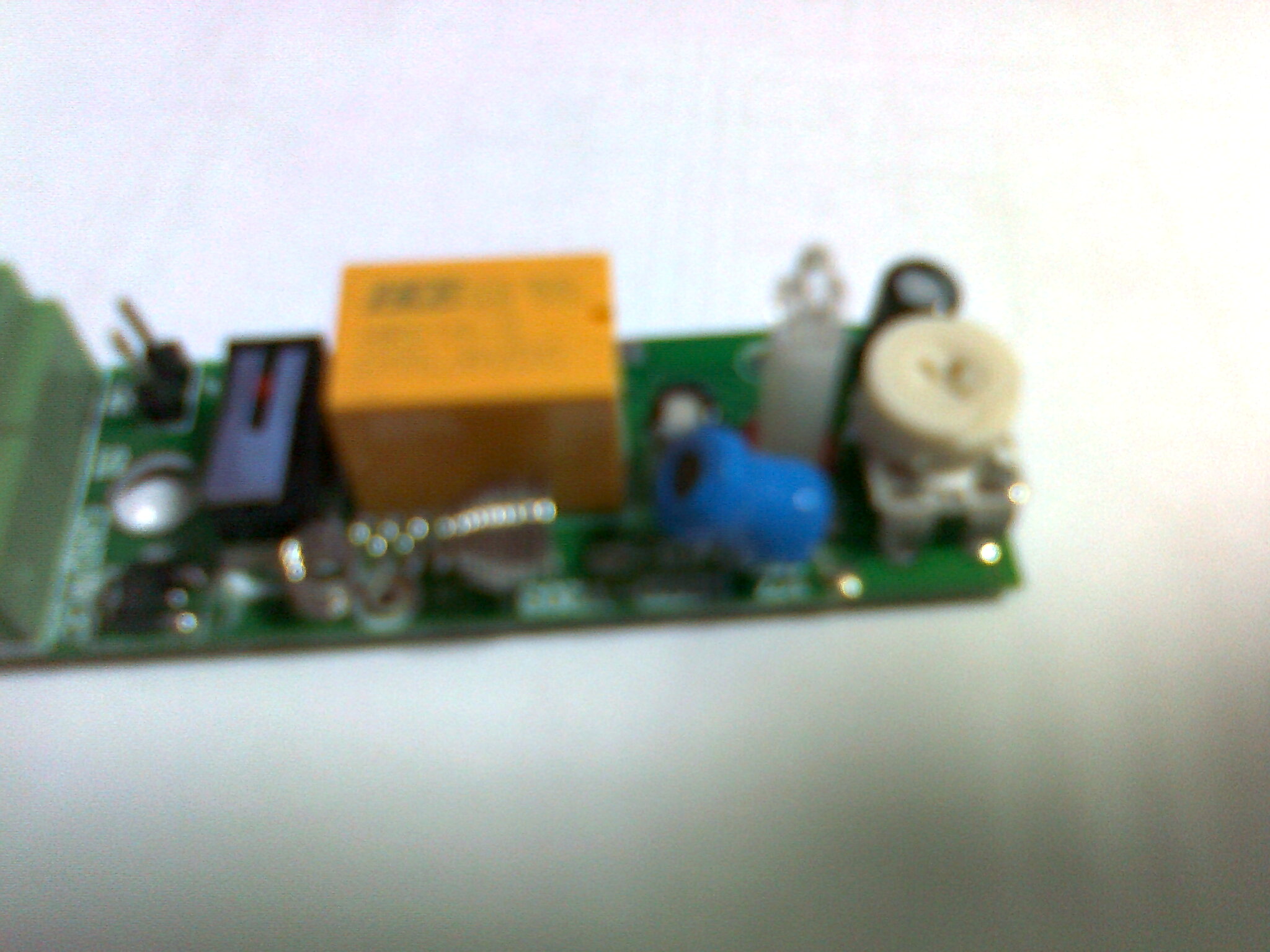

i want to implement a vibration sensor that has a amgnet attached ona spring and a coil that gets the magnetic flux change converted to current. and then the current is amplified and a relay is switched... but i cant find the coil and the magnet piar anywhere from internet... i dont know what is this components special name etc.. but i have some oics that i would share if some one knows the name or some supplier plz tell me its name or from where can i buy this, the blue one is a coil .


Attachments

  • Photo0102.jpg
    366.7 KB · Views: 87
  • Photo0103.jpg
    366.8 KB · Views: 88
  • Photo0104.jpg
    382.8 KB · Views: 86
  • Photo0105.jpg
    425.4 KB · Views: 95

Reloadron

Well-Known Member
Most Helpful Member
When the images are opened all I see is an out of focus blur. Are there any part numbers on the existing sensor? Board marking designations? Anything at all that labels it? Again, the image quality is really poor.

Ron


SABorn

New Member
the image quality is really poor.

Ron did you forget to put your glasses on :D

Hell i thought i must have forgot to put my glasses on, but then hold on i dont wear glasses.

Blur???? that an understatement, my eyes still wont focus properly after looking at the ............ well i cant say photos ?????

What i guess it could be is a magnet on a spring and a reed switch or hall sensor mounted close to detect the vibration.

I think the "blue one" is an inductor and has nothing to do with the spring and magnet.

Pete.

Last edited:

Reloadron

Well-Known Member
Most Helpful Member
I thought the blue thing was an inductor designed to pickup off the movement of the magnet on a spring. Yeah, the images made my head hurt. :) I was trying to be nice.
