Troubleshooting a Pressure Transmitter Circuit.

Status
Not open for further replies.

airisha

New Member

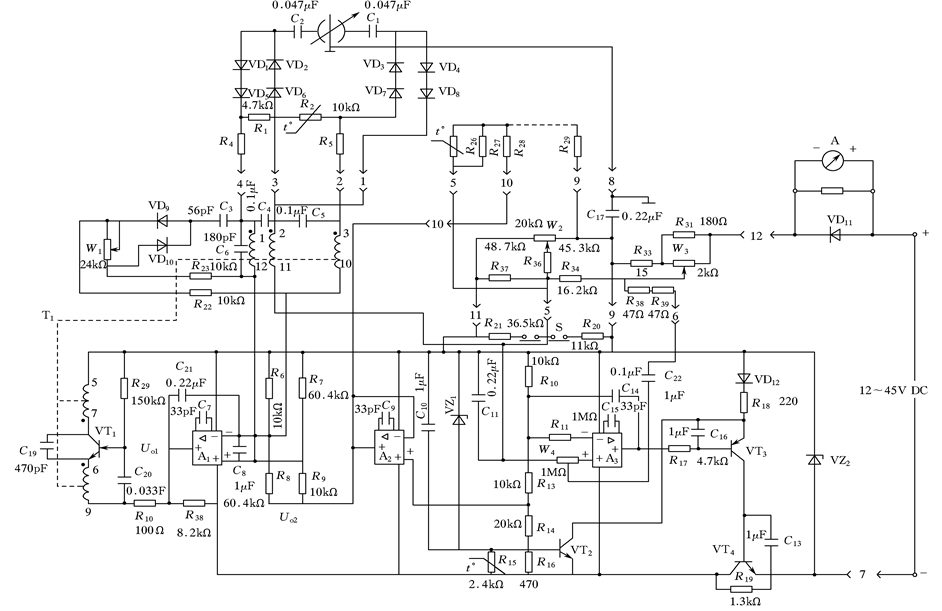

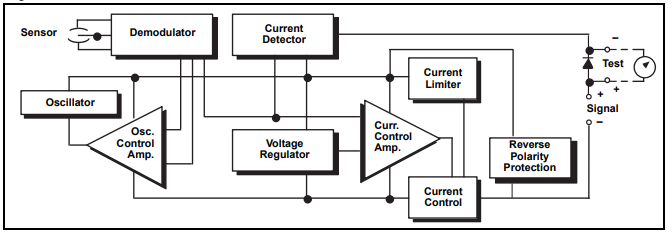

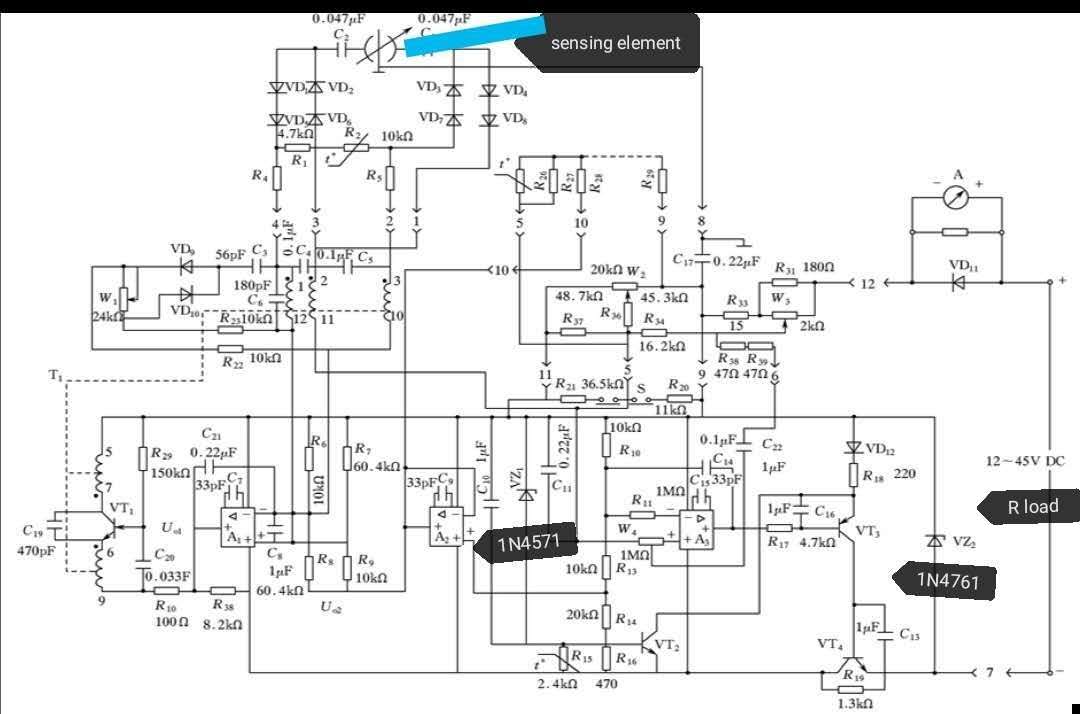

I have implemented the circuit of pressure transmitter in LTSPICE. The goal is to get 4 to 20mA output through the load resistance with the variation in differential capacitor(sensing element). But the circuit is not operating exactly as required. I am attaching the circuit diagram and the LTSPICE circuit. Please help to get the desired results. More information can be provided if required.


Attachments

  • Presssure Transmitter Circuit.asc
    16 KB · Views: 144
  • 1.jpg
    58.8 KB · Views: 165
  • 2.png
    97.7 KB · Views: 163
  • 3.png
    22.9 KB · Views: 160
