I'm looking for the datasheet of a photodiode - TIL81, I cant really find it on the search engines. Can someone help? Thanks.



Sebi

Active Member

• Nov 28, 2004

• #2

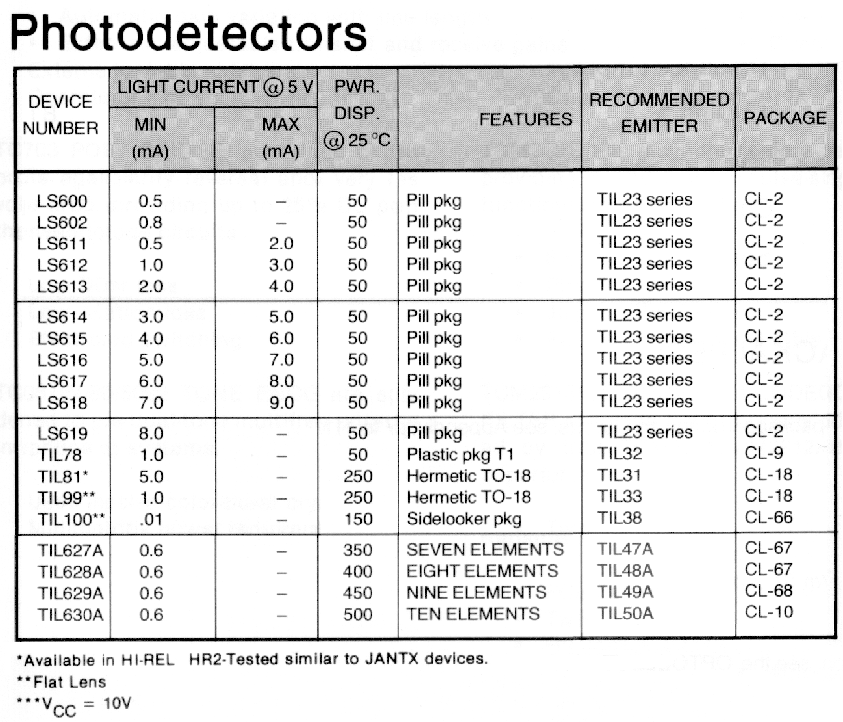

It's pretty old... Just scanned from my old TI catalog '83.



Attachments

• tiphotodet.gif

  221.7 KB · Views: 2,975

Sebi

Active Member

• Nov 28, 2004

• #3

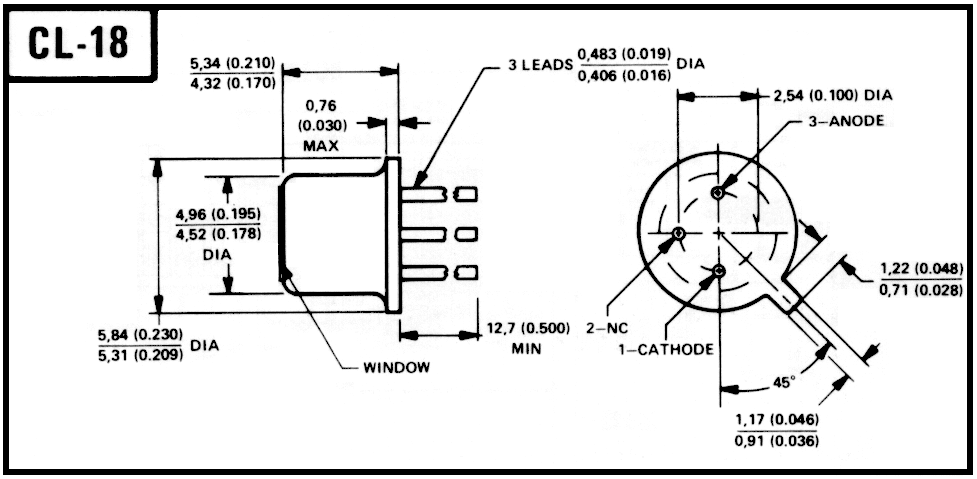

Ahh.. i almost forgot the case outline.



Attachments

• case.gif

  79.6 KB · Views: 3,223

k7elp60

Active Member

• Nov 28, 2004

• #4

I have a 1976 TI data book that lists the specs, I have no way to scan the pages for you. Here is the maximum ratings, It NPN planar silicon phototransistor.
Collector -Base Voltage 50V
Collector-Emitter Voltage 30V
Emitter-Base Voltage 7V
Emitter-Collector Voltage 7V
Continous Collector Current 50mA
Continous Devie Dissipation at 25 degrees 250mW

Hfe typical when VCE=5V IC=1mA
If you need any other specs let me know



D

DEEPSHIKHA

New Member

• Apr 8, 2009

• #5

Working of til-81

Working of til-81



M

mneary

New Member

• Apr 8, 2009

• #6

DEEPSHIKHA said:

Working of til-81

Click to expand...

Photon strikes junction; electrons flow. Peak sensitivity is 0.9 µm.



K

KMoffett

Well-Known Member

• Apr 9, 2009

• #7

Another one, but not much more info. But they do list it as being used as a photo-diode or a photo-transistor.

Ken



Attachments

• TIL81.pdf

  56.9 KB · Views: 1,935

microtexan

New Member

• Apr 9, 2009

• #8

Results 1 - 10 of about 20,300 for TIL81. (0.22 seconds) on a google search



K

KMoffett

Well-Known Member

• Apr 9, 2009

• #9

Here is a good one. TIL81 Spec Sheets Details Diodes, Transistors, Thyristors, Triacs, Diode Array, Integrated Circuits and Semiconductors — Product Line

microtexan,
I can see why people get frustrated and turn to forums for help. I quit looking down the list when all of them started turning up parts distributors that didn't even have them. They must be in a lot of these peoples keyword lists.

Ken

Ken



M

mneary

New Member

• Apr 9, 2009

• #10

I have a faded 6-page data sheet, but the questions need to be less vague than simply

Working of til-81

Click to expand...

, especially a first and only post.

I'll try to answer the most common questions:

Peak sensitivity 940 nm, skirts to near zero around 500 and 1100 nm, 50% points around 740 and 990.
With 100 ohm load, switching time as photodiode typ 500 ns, as phototransistor typ 8 us.
Angular sensitivity about +/- 10 degrees.
At 10 mW/cm^2, as photodiode, light current is typ 170 µA
At 5 mW/cm^2, as phototransistor with VCE=5V, typ 22 mA.
