State Machine diag?

Status
Not open for further replies.
S

Scarr

Member
Hi all,

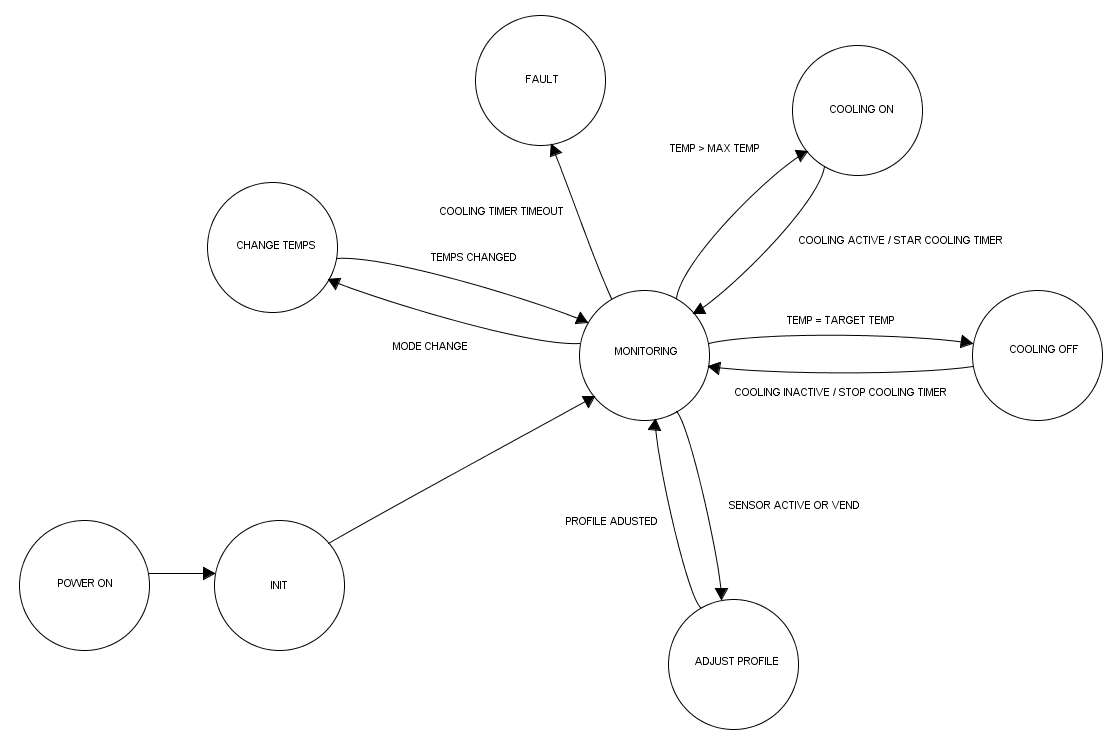

Can anyone / everyone take a look at this (my first) state machine diag its for a vending machine, just to see if I have got it right?

Thanks

Steve


Attachments

  • FSMDiag.jpg
    45.3 KB · Views: 245
