Simple RF relay for PICAXE chip

R

rocket100

Member

• Oct 14, 2009

• #1

I need a simple RF transmitter and receiver for a PICAXE chip. All I need is a circuit that with a touch of a button sends a RF signal somehow to a PICAXE chip telling it that, that button is pressed. It needs to be simple, inexpensive, and the range needs to be about 300 feet indoor (with walls in the way).


Any help is great thanks!!!



C

colin55

Well-Known Member

• Oct 14, 2009

• #2

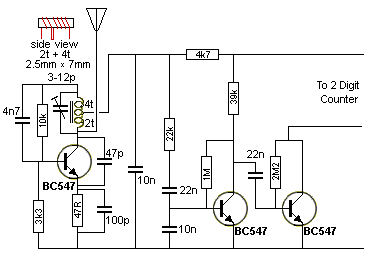

Here are the transmitter and receiver circuits.

I use a PIC micro for the receiver.



Attachments

• 27MHzTx-4Ch.gif

  6.1 KB · Views: 969
• 27MHzReceiver-4Ch.gif

  5.6 KB · Views: 890

Sceadwian

Banned

• Oct 14, 2009

• #3

Sparkfun sells very inexpensive units that will do that.



R

rocket100

Member

• Oct 14, 2009

• #4

colin55 said:

Here are the transmitter and receiver circuits.

I use a PIC micro for the receiver.

Click to expand...

I want something simpler with just one button.

Thanks!



C

colin55

Well-Known Member

• Oct 14, 2009

• #5

Am I really talking to someone who thinks they can solder two components together? . . . . . Remove the parts you don't need.



R

rocket100

Member

• Oct 14, 2009

• #6

Is there any onther circuits that have 2N transistors not BC transistors, because I don't have any on hand exept 2Ns and I am not old enough to order stuff online.



C

colin55

Well-Known Member

• Oct 15, 2009

• #7

BC547 simply means ANY low current . . . low power . . . . NPN transistor.



R

rocket100

Member

• Oct 15, 2009

• #8

colin55 said:

BC547 simply means ANY low current . . . low power . . . . NPN transistor.

Click to expand...

So a 2N2222 would work?



blueroomelectronics

Well-Known Member

• Oct 15, 2009

• #9

Yes a 2N2222 is fine.
