orcad problem

HI all

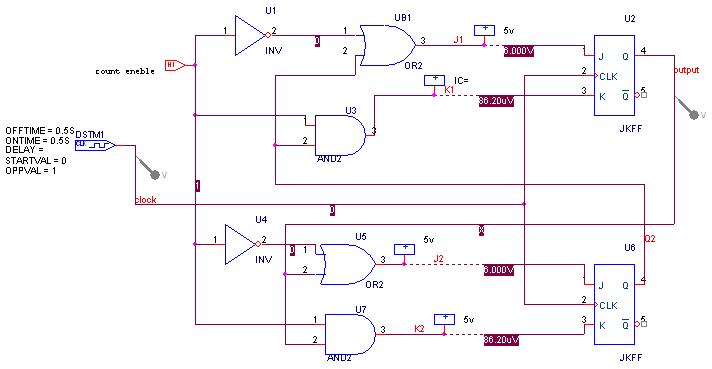

i design a counter using 2 jk flip flops which count 0 -1-3 and again come back to 0 (with count enable input )

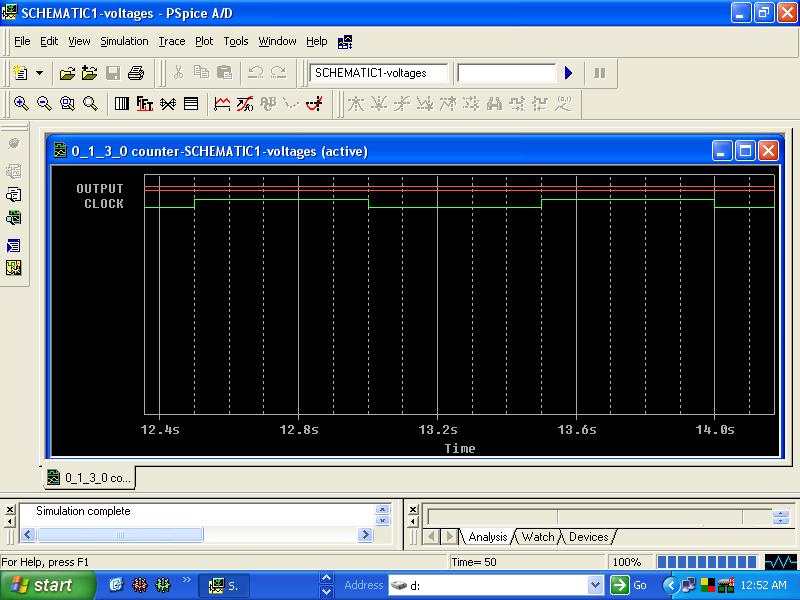

when i simulate (transient analysis) this circuit in orcad it give nothing
please help me to simulate this:confused:

i know this is some silly thing to you but to me it is really big thing :confused:
are their any useful web link regard to digital circuit simulations in orcad

HELP!!!!!!!!!!!!!!!!!!!
