Schematics for Kenwood KAC-7020 amp

Status
Not open for further replies.
B

bzkoj

New Member
I have a Kenwood KAC-7020 amp but have lost the input connector. There are 8 wires in this cable and I need to know what goes to what.
I need any schematic or datasheets for this amp.

Please help!

I have a Kenwood KAC-7020 amp but have lost the input connector. There are 8 wires in this cable and I need to know what goes to what.
I need any schematic or datasheets for this amp.

Please help!

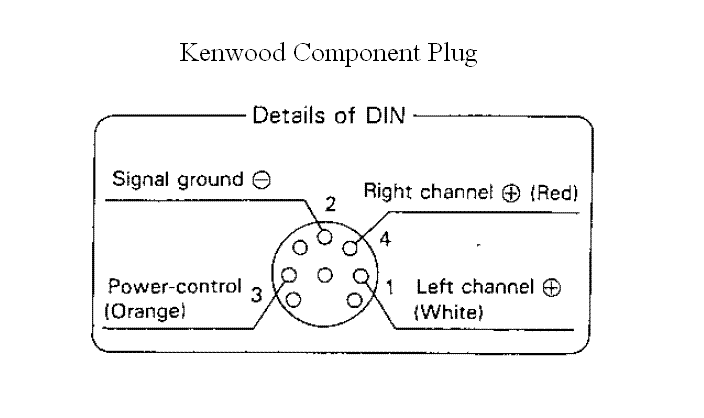

I found this in a KAC-720 Owners Manual.


Attachments

  • Kenwood Component Plug.GIF
    10.5 KB · Views: 4,235
  • Kac-720_Instructions_Kenwood.pdf
    146.2 KB · Views: 2,567

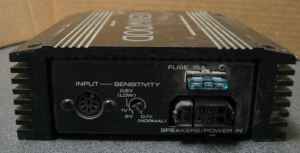

  • KAC-7020.jpg
    4.3 KB · Views: 3,519
Last edited:
Status
Not open for further replies.
