S Scania141 New Member May 28, 2013 #1 I have a relay like this http://shop.mat-con.net/epages/62158737.sf/en_GB/?ViewObjectID=21365764 , and I can't figure out how to wire it to switch polarity. Can anyone help me?
I have a relay like this http://shop.mat-con.net/epages/62158737.sf/en_GB/?ViewObjectID=21365764 , and I can't figure out how to wire it to switch polarity. Can anyone help me?

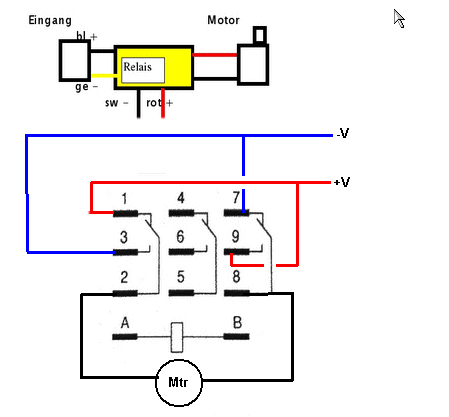

ericgibbs Well-Known Member Most Helpful Member May 28, 2013 #2 Scania141 said: I have a relay like this http://shop.mat-con.net/epages/62158737.sf/en_GB/?ViewObjectID=21365764 , and I can't figure out how to wire it to switch polarity. Can anyone help me? Click to expand... Hi, Look at this image, any problems please ask. E. Attachments AAesp02.gif 13.2 KB · Views: 184
Scania141 said: I have a relay like this http://shop.mat-con.net/epages/62158737.sf/en_GB/?ViewObjectID=21365764 , and I can't figure out how to wire it to switch polarity. Can anyone help me? Click to expand... Hi, Look at this image, any problems please ask. E.

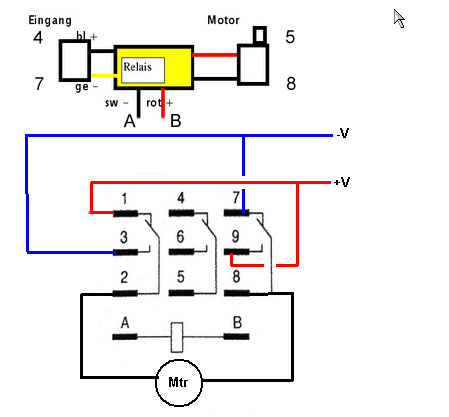

S Scania141 New Member May 28, 2013 #3 This is what I have from Mat-Con, can you correct numbers and letters to your wiring? Thanks for quick response! LL
This is what I have from Mat-Con, can you correct numbers and letters to your wiring? Thanks for quick response! LL

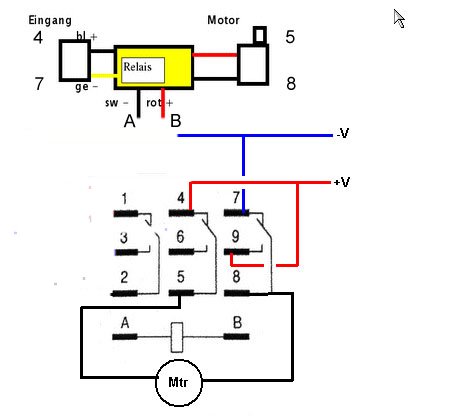

ericgibbs Well-Known Member Most Helpful Member May 28, 2013 #4 Scania141 said: This is what I have from Mat-Con, can you correct numbers and letters to your wiring? Thanks for quick response! Click to expand... hi Just move the two left wires to the centre pins, refer this image. Attachments relay.jpg 18.6 KB · Views: 164
Scania141 said: This is what I have from Mat-Con, can you correct numbers and letters to your wiring? Thanks for quick response! Click to expand... hi Just move the two left wires to the centre pins, refer this image.
ericgibbs Well-Known Member Most Helpful Member May 28, 2013 #6 Scania141 said: Thank you ericgibbs, now I have reverse on my motor! Click to expand... hi, Thats good to hear. E.
Scania141 said: Thank you ericgibbs, now I have reverse on my motor! Click to expand... hi, Thats good to hear. E.
