Really basic LTSpice question

Status
Not open for further replies.

ejonp

New Member
I use some simple SPICE simulations as part of an electronics course I teach. In the past, I've had students download ngspice, but I was going to try LTSpice this year, because it's more user friendly. Unfortunately, I can't seem to make it work on even the simplest of our examples. For example, the transient analysis below returns "Run: missing node(s)". I've run this on just about every version of SPICE and it works fine.

Any advice would be appreciated.

Thanks in advance.


EXAMPLE 3 LRC
***Begin netlist
R1 1 2 100
C1 1 0 1mF
L1 2 0 100
***End netlist
***Specify initial condition (5V at node 1) with .IC command
.IC V(1) = 5
***Perform transient analysis
.TRAN 0.1s 20s
***Begin control block
.control
run
plot V(1) V(2)
.endcontrol
***End control block
.end

crutschow is one of the LTspice experts here. Hopefully he sees this soon for you.

I haven't worked from a Spice netlist in at least 20 years, and if you are still using netlists in your electronics course you are well behind the state-of -the art (unless you are using it just to demonstrate how Spice internally describes a circuit) .

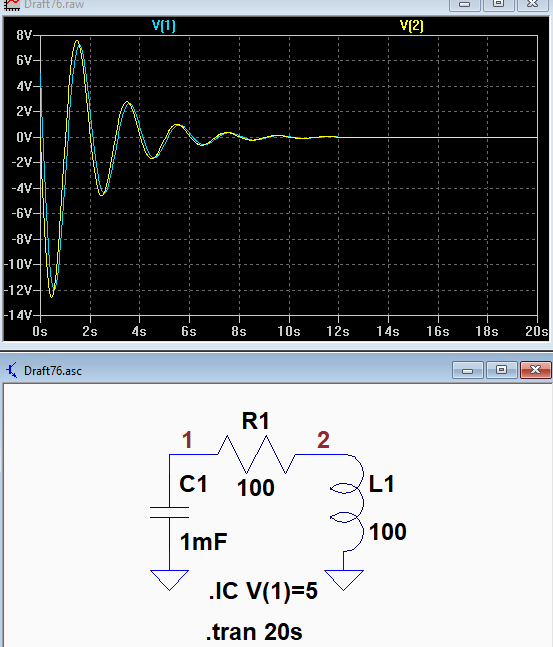

So below is the LTspice simulation from the generated schematic with its attached .asc file.

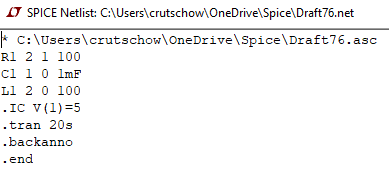

The netlist generated from the schematic is below the schematic.




Attachments

  • Draft76.asc
    521 bytes · Views: 106
Last edited:
Has the sim text been entered on a schematic as a command or as a comment?

I use some simple SPICE simulations as part of an electronics course I teach. In the past, I've had students download ngspice, but I was going to try LTSpice this year, because it's more user friendly. Unfortunately, I can't seem to make it work on even the simplest of our examples. For example, the transient analysis below returns "Run: missing node(s)". I've run this on just about every version of SPICE and it works fine.

Any advice would be appreciated.

Thanks in advance.


EXAMPLE 3 LRC
***Begin netlist
R1 1 2 100
C1 1 0 1mF
L1 2 0 100
***End netlist
***Specify initial condition (5V at node 1) with .IC command
.IC V(1) = 5
***Perform transient analysis
.TRAN 0.1s 20s
***Begin control block
.control
run
plot V(1) V(2)
.endcontrol
***End control block
.end

Hi

If you've used many versions of spice, you would know that all spice's are not created equal.:)

The "Run:missing node(s)" message is due to LTspice's interpretation of the unsupported statement "run" as having no connecting nodes. :cool:
Its interpreting "run" using its leading "r" as a resistor with no connecting nodes.:)

While LTspice is somewhat PSpice compatible, LTspice does not support .control, .endcontrol, plot and run statements, so you will need to comment those out.

See below.
********
R1 1 2 100
C1 1 0 1mF
L1 2 0 100
***End netlist
***Specify initial condition (5V at node 1) with .IC command
.IC V(1) = 5
***Perform transient analysis
.TRAN 0.1s 20s
***Begin control block
*.control
*run
*.plot V(1) V(2)
*.endcontrol
***End control block
.end
********
eT

Last edited:
Adding to eTech's comments, I think LTspice can only be run using the "Run"
command in the LTspice window.

Its a way back so I dont quite remember, however I had issues getting ltspice to run in win7, it worked on my old xp machine, but not w7, I think it was something in the component library, schematics loaded but wouldnt sim.
