question about flipflops and decoders

E

evangeline

New Member

• Jun 11, 2011

• #1

please help me with these circuits:
a JK flipflop using a D flip flop and a multiplexer
a 5 to 32 decoder using four 3 to 8 decoders and a 2 to 4 decoder,
thanks, a picture would help more



crutschow

Well-Known Member

Most Helpful Member

• Jun 11, 2011

• #2

How are going to learn anything if we just hand you the answer?

Analyze the problem (what inputs and outputs do you need) and tell us what your questions are on generating those circuits.



E

evangeline

New Member

• Jun 11, 2011

• #3

I have an important test next week and i need the answers, that's why I asked them here.. but you're right.. I will think about them again and i will tell the problems here



crutschow

Well-Known Member

Most Helpful Member

• Jun 11, 2011

• #4

Yes, it's important that we see you are attempting to solve the problem.

For example, look at the characteristics of a D FF as compared to a JK FF and determine what signals you need to convert one to the other.

P.S. Why did you post here? This should be in the homework section.



ericgibbs

Well-Known Member

Most Helpful Member

• Jun 11, 2011

• #5

evangeline said:

I have an important test next week and i need the answers, that's why I asked them here.. but you're right.. I will think about them again and i will tell the problems here

Click to expand...

Hi,

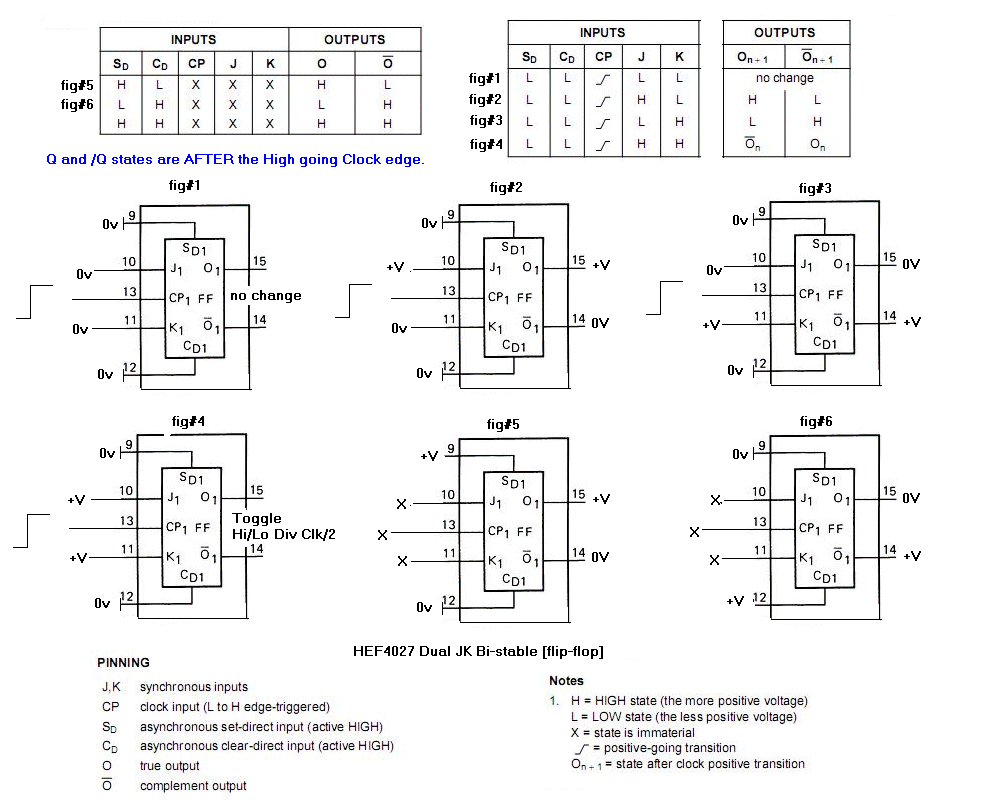

This should give you a little guidance for the JK.



Attachments

• A4027a.png

  85 KB · Views: 252

Last edited: Jun 11, 2011
