Hi there, Im new to this whole microcontroller thing. Im doing a personal project in which I want to control a stepper motor. I have an Atmel At89 ISP Cable, A PIC16F877 MC, several stepper motor drivers but i would like to use the ULN2003AN ( cause i saw a diagram online in which a PIC16f877 and ULN2003an is used...so im using that
my questions are:
1) can i program the PIC16 MC using the Atmel At89ISP cable? or do i need to get an Atmel MC?
2) if i DO need to get an Atmel MC, which one should i get, given Im a rookie and im not doing anything complicated but programing a stepper motor.
3) is there anywhere online or maybe someone already has done it (im sure) a detailed diagram as to how to put these things together, step by step.
step 1: how to connect the MC to PC (pin by pin)
step 2: how to program MC
step 3: how to connect the MC and driver togather ( i think i got that step
step 4: how to connect the stepper motor to the driver.
etc...

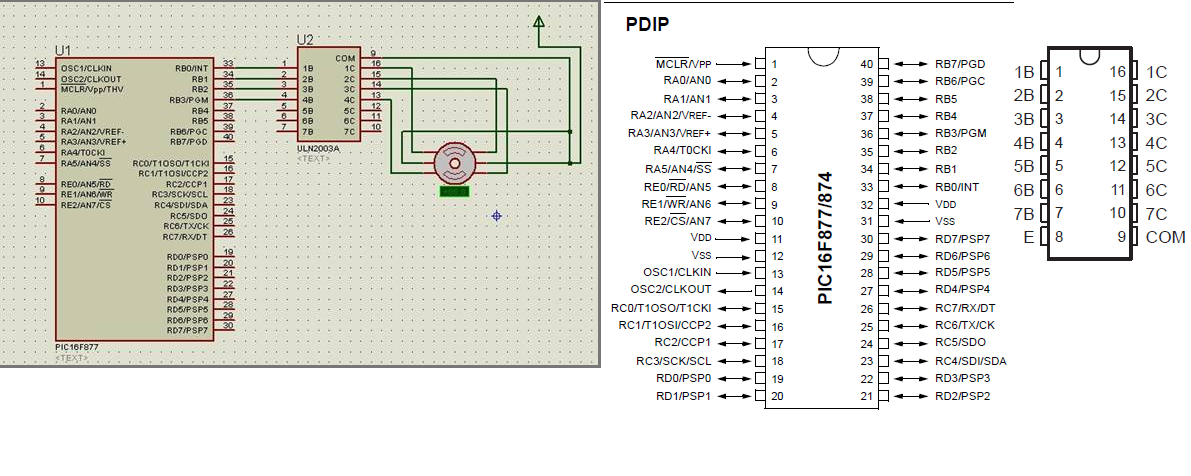

so farI have figured out the coils and centre taps of the stepper motor, have downloaded the Atmel software. Have a vague idea about the programing. but i dont know which cable pin goes to which pin of the MC? and even though i have read the data sheet of both the MC and driver im still confused. I have attached a diagram (i got it from the web, so im not taking credit for it) which makes some sort of sense but still doesnt explain how i should connect the MC to the PC to program it. I have even downloaded Proteus Pro and am trying to understand it. I know some of you might say "just buy a MC programmer or stepper motor programer but i would like to do it all and learn it. thanks in advance for the help. and sorry for a long post.
regards
SN
