PIC16F877+Max232+DB9

Status
Not open for further replies.
K

kyo

New Member
hi...

please give me the schematic diagram of PIC16F877+Max232+DB9 using the TX and RX...please....thankssss


Attachments

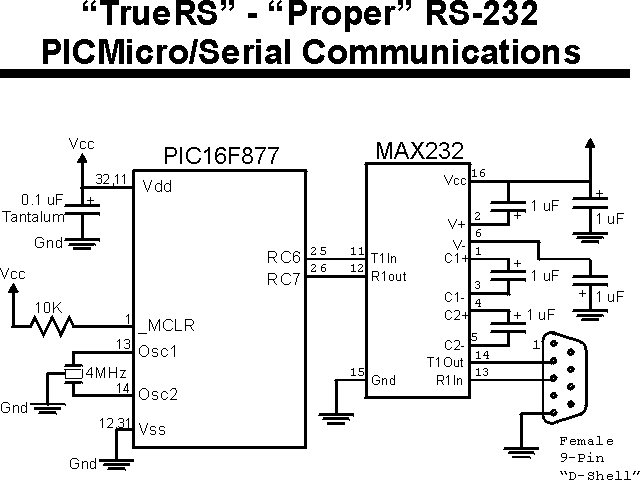

  • pic16f877_rs232_120.gif
    9.2 KB · Views: 4,902
please give me the schematic diagram of tws-371-3+pt2262+PIC16F877+Max232+DB9 using the TX and RX...please....thankssss
