Old Motorola Transmitter Schematic needed

Status
Not open for further replies.

hotwaterwizard

Active Member
Old Motorola Transmitter Schematic needed
Motorola
MODEL C1541AA/SP21
TRANS. TYPE CC3083
SERIAL# MP011H
117VAC

TRANSMITTER CTD14080AC
SCHEMATIC DIAGRAM # 63E81054A41


Attachments

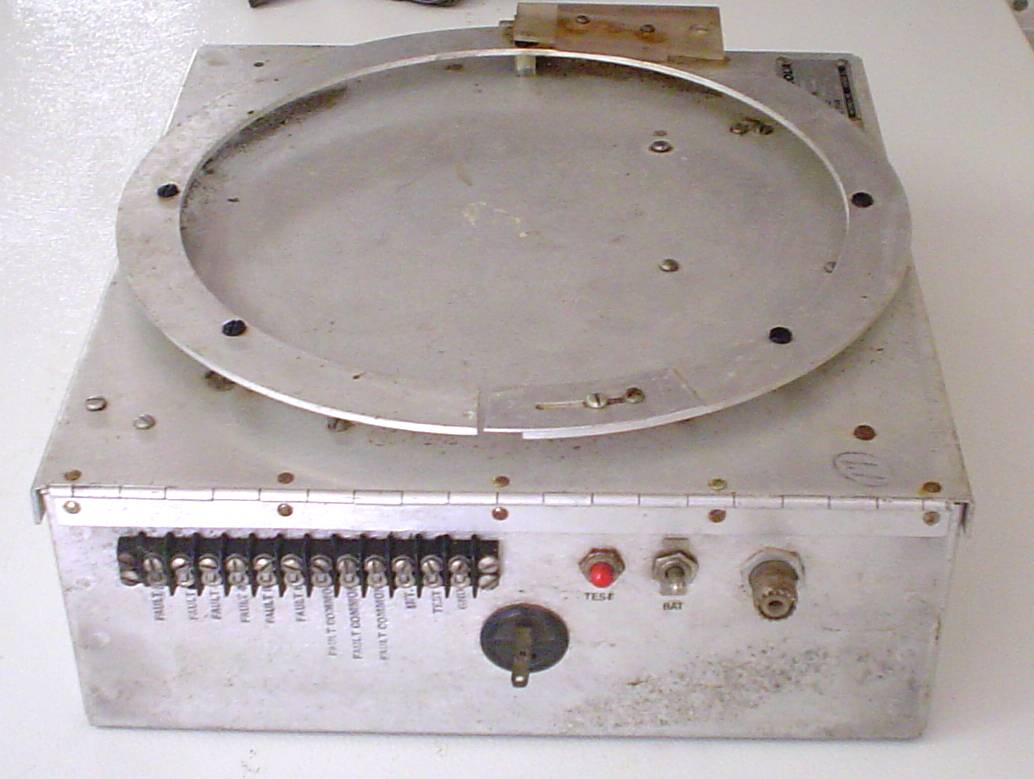

  • Right Side.jpg
    Right Side.jpg
    71.5 KB · Views: 365

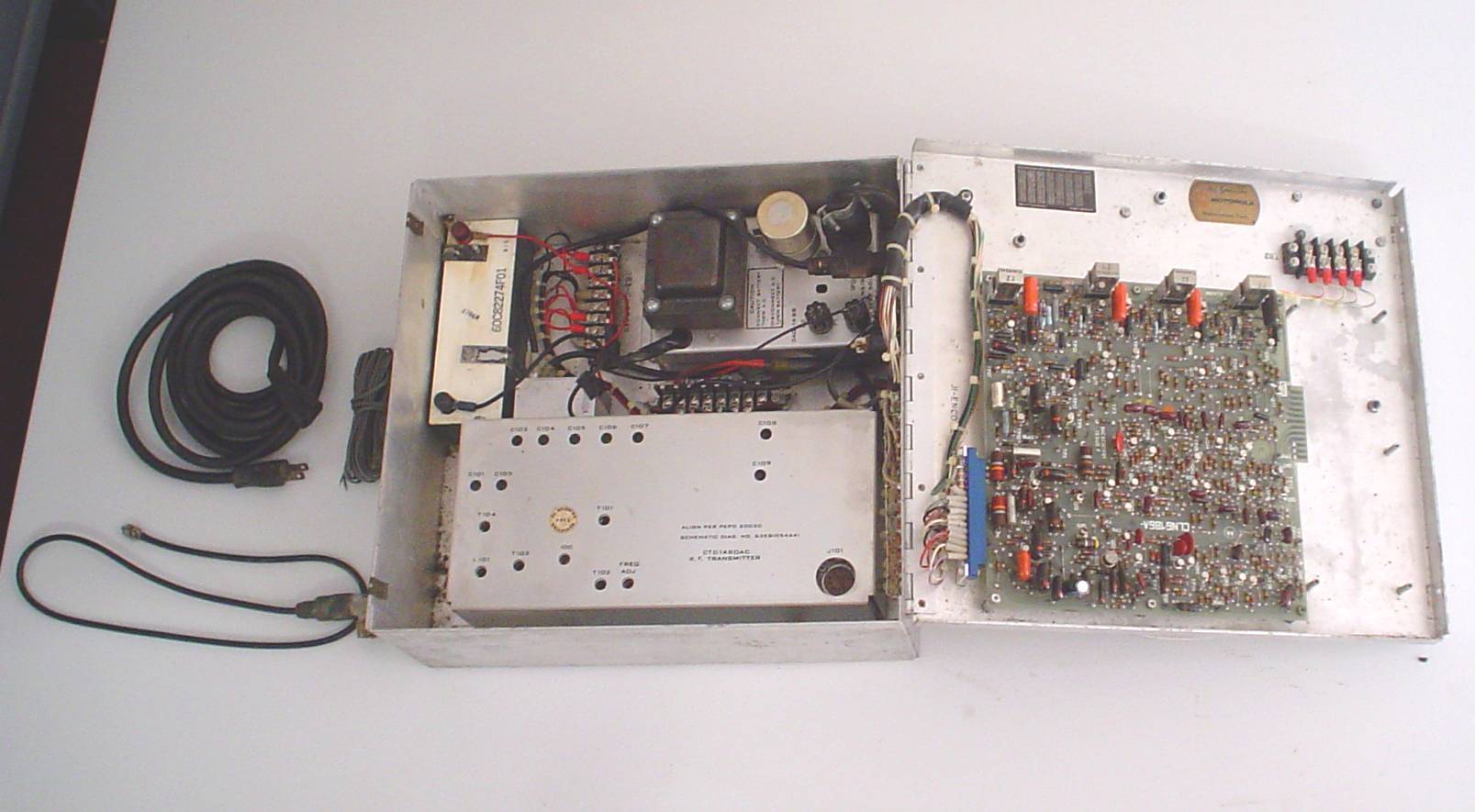

  • Open Top.jpg
    Open Top.jpg
    123.3 KB · Views: 493

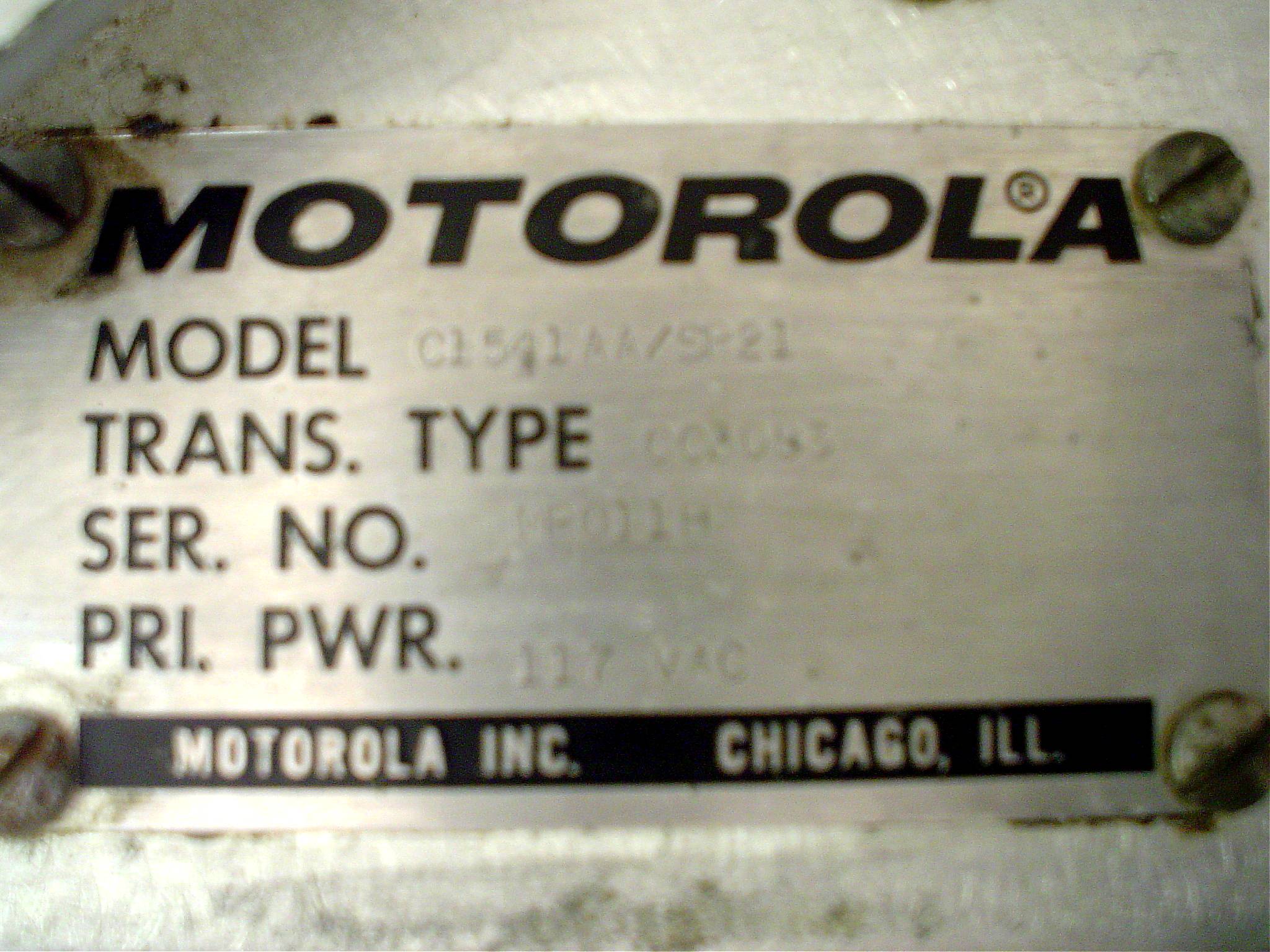

  • Data Plate.jpg
    Data Plate.jpg
    370.9 KB · Views: 308
John - Motorola commercial gear is often converted for amateur use - you might try contacting a local amateur radio club. Here in Rochester we have the Rochester VHF group - hams who have an interest in VHF/UHF. Among those groups are often people who have struggled with similar problems.
