Micronta 22-220A Diagram

Status
Not open for further replies.

leal

New Member

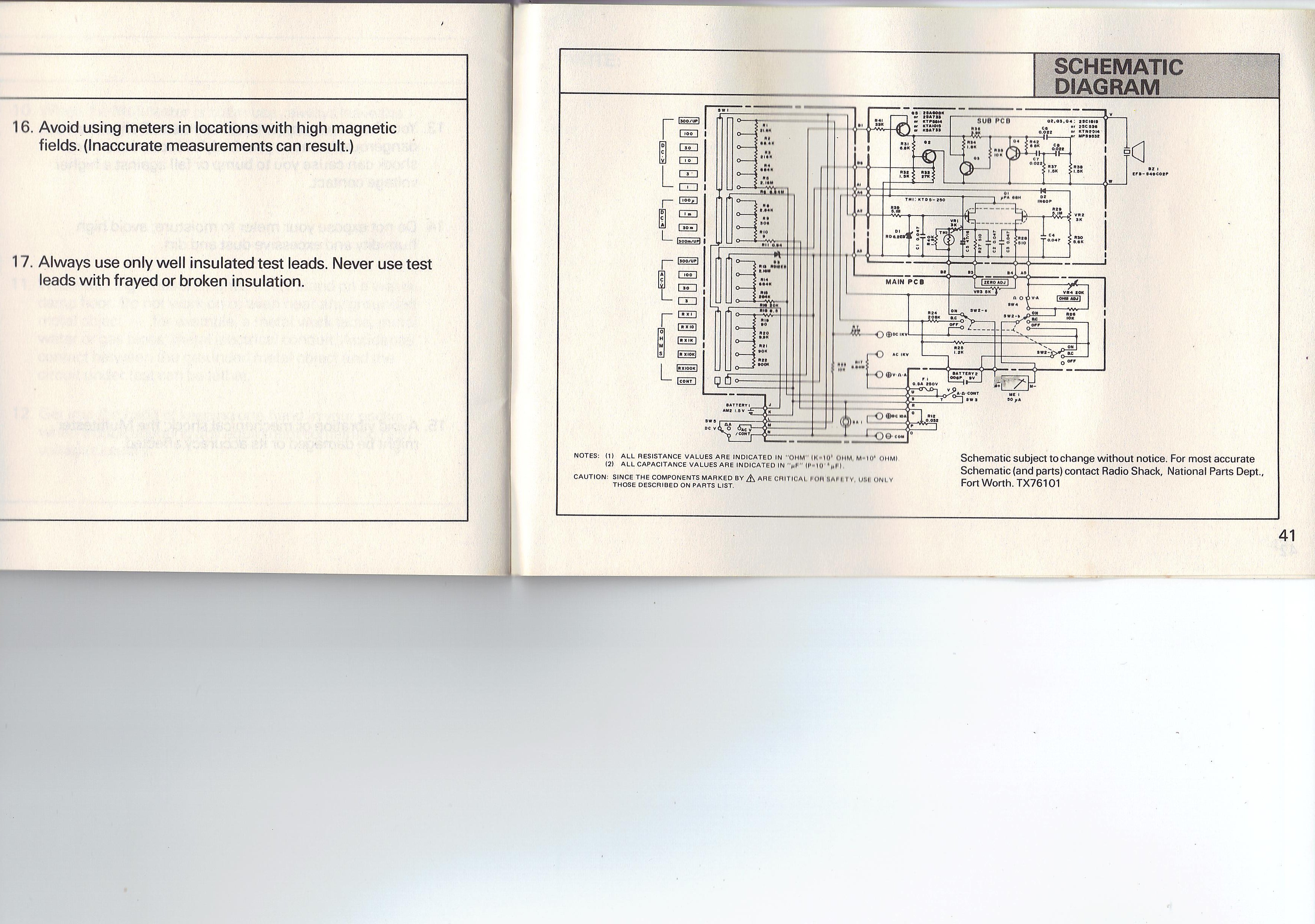

micronta 22-220a schematic

hi dude I hope this will work for you.


Attachments

  • SCAN0001.JPG
    1.5 MB · Views: 2,264

Saw56

New Member
Hi,

I am also looking for the schematic of the Micronta 22-220.....unfortunatley I cannot read the values on your scanned image....any chance you could make a higher res scan or tell me the values of R14 and R19?

Thanks

Steve


absf

Active Member
I think R14 is 684K and R19 is 90 Ω.

Allen


Attachments

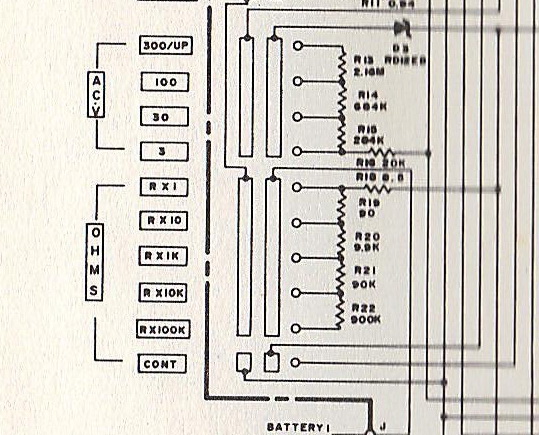

  • micronta_ckt_crop.jpg
    112.9 KB · Views: 723

Grasnall

New Member
Hi, there . Does anyone know where can I find, for replacement, both zero adjust potentiometers ? Both parts of my Micronta have serious bad contact. i have already tried to spray contact cleaner, without success. Thanks for your time.
