Measure Enery Signal / Area Under the curve

Status
Not open for further replies.

usfhugs88

New Member
hello..

I forgot my formulas and could not remember how to do this so I need some input from everyone.

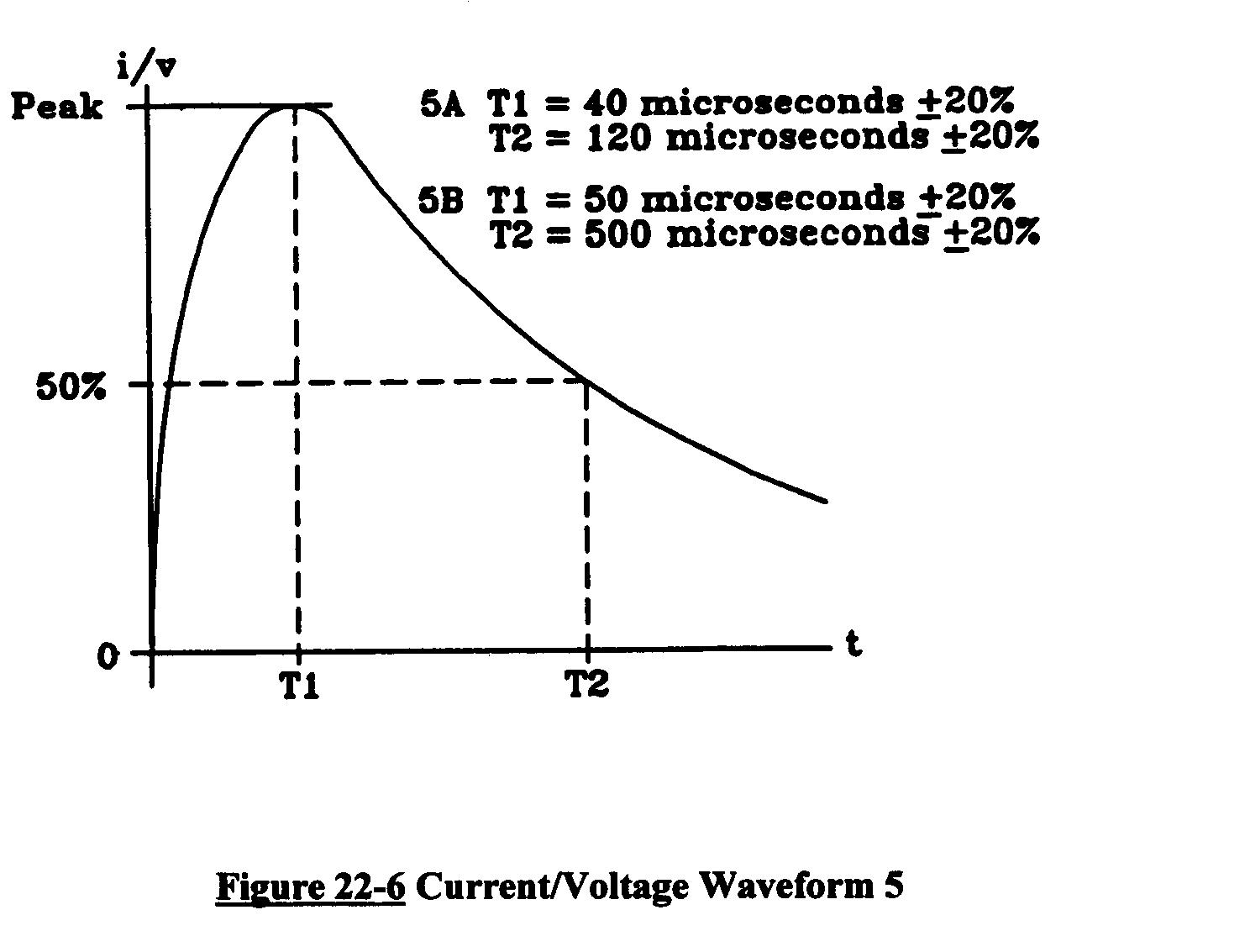

I would like to know how to measure the energy signal of the diagram below. I know that measure the signal energy is just measuring the area under the squared signal.

If I have a waveform that has the characteristics of
Voc/Isc = 1600/1600

Voc = Peak Open Circuit Voltage (volts)
Isc = Peak Short Circuit Current (amps)

How much energy in Joules.


Attachments

  • waveform5.jpg
    114.6 KB · Views: 236
