G gljj New Member Feb 26, 2009 #1 Can anyone help me with the pin id's for this part? Thanks a Million !! GLJJ

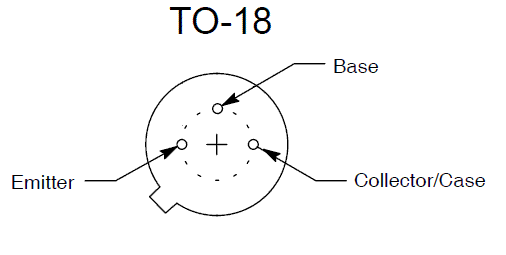

hotwaterwizard Active Member Feb 28, 2009 #2 MAL100A NPN Phototransistor Micro Electronics Product Specifications - MAL100A - VCEO: 30V - IC: 50mA - Power Dissipation: 200mW - Package: TO-18L - Manufactured By: Micro Electronics - Glass Phototransistor Pin out is the standard TO18 ebc looking from tab format. Same as BC108, 2N2222A etc https://www.electro-tech-online.com/custompdfs/2009/02/mal100.pdf https://www.electro-tech-online.com/custompdfs/2009/02/nte3037.pdf Datasheet Archive - MAL100 datasheet - MAL100 application note - MAL100 pdf MAL100 Specifications Light Curr. Min : 200u @Irradiance-Ee (tst) (W/Cm Sq) : 2.0m @VCE (test) : 5.0 t(resp) Max.(s) Response Time : 5.0u Wvlngth (Peak) : 800n I(D) Max. (A) : 100n @VCE (test) : 5.0 Vbr CEO : 30 I(C) Max. (A) : 50m P(D) Max. (W) : 360m Minimum Operating Temp (шC) : -55 Maximum Operating Temp (шC) : 150ю Package Style : Can-4.2 Mounting Style : T MAL100 Spec Sheets Details Diodes, Transistors, Thyristors, Triacs, Diode Array, Integrated Circuits and Semiconductors — Product Line Attachments TO18.GIF 5 KB · Views: 873 Last edited: Feb 28, 2009
MAL100A NPN Phototransistor Micro Electronics Product Specifications - MAL100A - VCEO: 30V - IC: 50mA - Power Dissipation: 200mW - Package: TO-18L - Manufactured By: Micro Electronics - Glass Phototransistor Pin out is the standard TO18 ebc looking from tab format. Same as BC108, 2N2222A etc https://www.electro-tech-online.com/custompdfs/2009/02/mal100.pdf https://www.electro-tech-online.com/custompdfs/2009/02/nte3037.pdf Datasheet Archive - MAL100 datasheet - MAL100 application note - MAL100 pdf MAL100 Specifications Light Curr. Min : 200u @Irradiance-Ee (tst) (W/Cm Sq) : 2.0m @VCE (test) : 5.0 t(resp) Max.(s) Response Time : 5.0u Wvlngth (Peak) : 800n I(D) Max. (A) : 100n @VCE (test) : 5.0 Vbr CEO : 30 I(C) Max. (A) : 50m P(D) Max. (W) : 360m Minimum Operating Temp (шC) : -55 Maximum Operating Temp (шC) : 150ю Package Style : Can-4.2 Mounting Style : T MAL100 Spec Sheets Details Diodes, Transistors, Thyristors, Triacs, Diode Array, Integrated Circuits and Semiconductors — Product Line
