Hope some one can point me to a data sheet

Its a serial lcd



Attachments

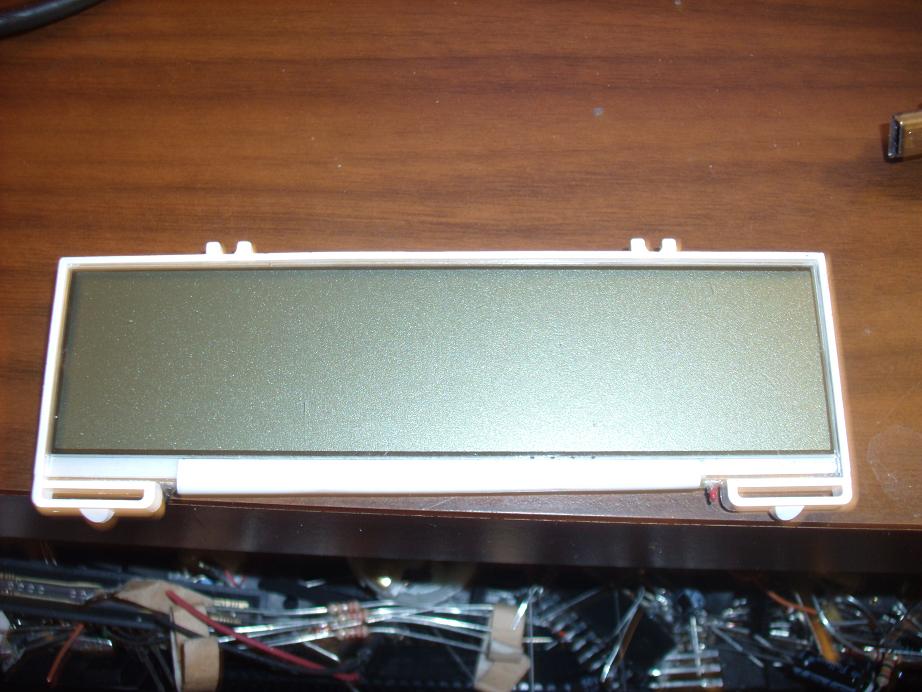

• LCD_1.JPG

  90.3 KB · Views: 513

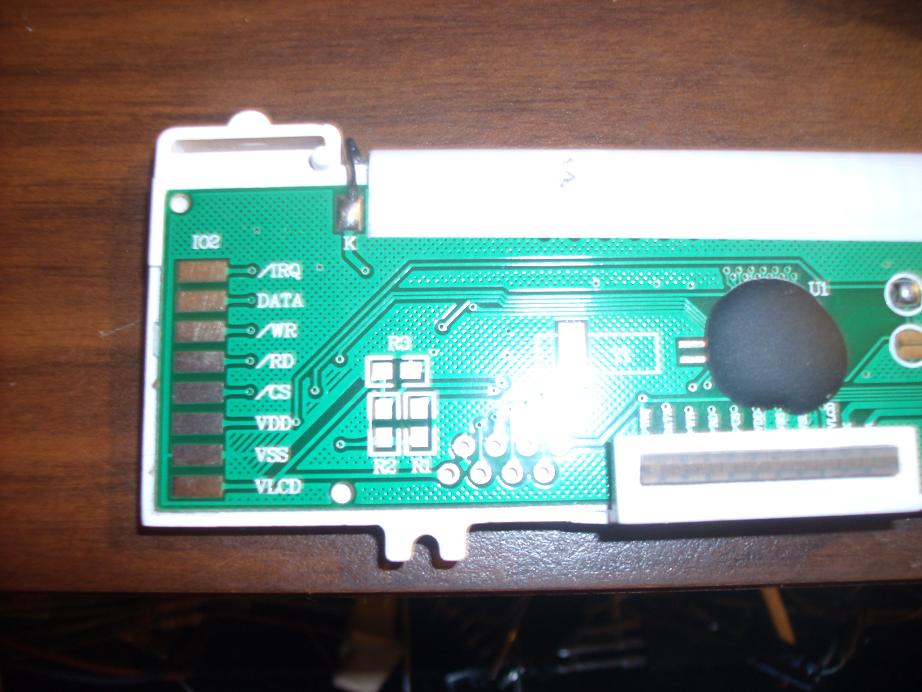

• LCD_2.JPG

  90.1 KB · Views: 505

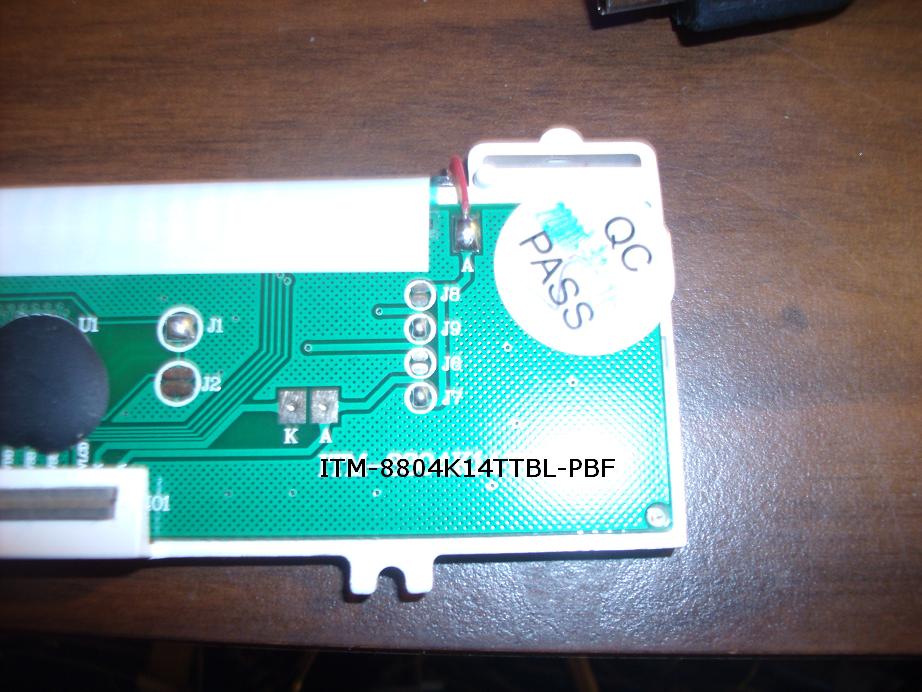

• LCD_3.JPG

  103.4 KB · Views: 492

B

baxev2005

New Member

• Jan 10, 2012

• #2

ITM-8808 LCD display datasheet

be80be said:

Hope some one can point me to a data sheet

Its a serial lcd

Click to expand...

It is NOT a general purpose character LCD display

It is a special purpose LCD for alarm panel keyboard. It has a 4 digit clock display with blinking dots in the middle and symbols related to alarms in the sides. Therefore it' s useless as a general purpose display.



Attachments

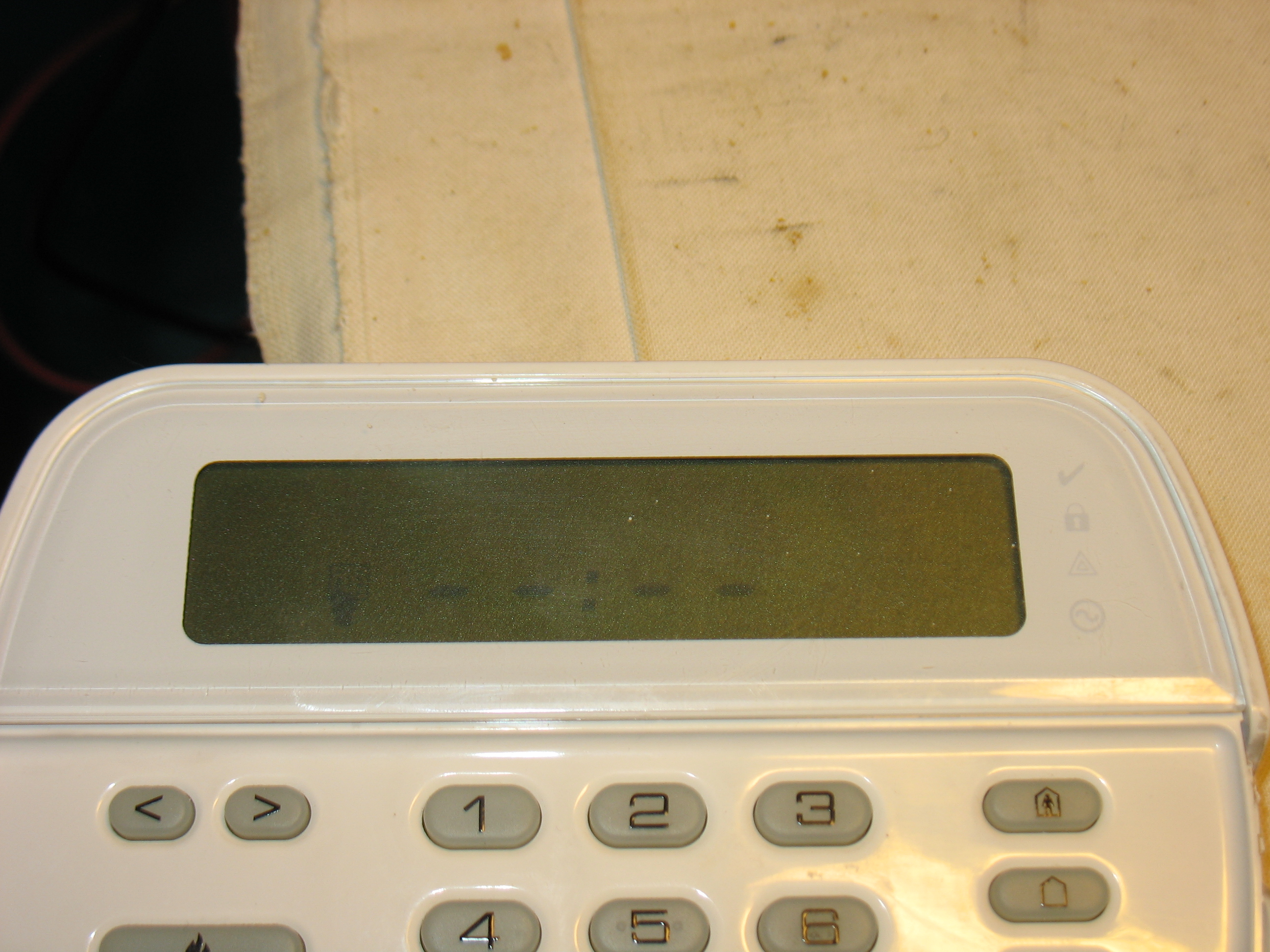

• IMG_6165.JPG

  1.7 MB · Views: 457

Last edited: Jan 10, 2012

be80be

Well-Known Member

Most Helpful Member

• Jan 10, 2012

• #3

I no what it was used in I still would like the data sheet



B

baxev2005

New Member

• Jan 17, 2012

• #4

I searched many hours but I found nothing. I assume that because it is tailored made not general purpose display for the specific application, its data sheet is not publicly available. If you have a working alarm keyboard (I do) and access to logic analyzer (unfortunately I don't) you probably may decipher the communication protocol.



be80be

Well-Known Member

Most Helpful Member

• Jan 17, 2012

• #5

I have about five of them the lcd is spi is all i no thanks any I salvage them for parts I just wished I keep a working one to see how the LCD worked



B

baxev2005

New Member

• Jan 17, 2012

• #6

Thanks for the info, I didn't realize that the communication protocol was so common. I will try to drive mine also just for fun as you said.
