Interface Cable Relay Circuit

Status
Not open for further replies.

CT1BWW

New Member
Hi Fellows,

Maybe anyone from can solve this. On my Amateur radio Station during many years I've used a Interface Cable between my Transceiver Kenwood and my Heathkit SB200 HF amplifier. Last weekend during a contest the relay fault. The circuits consists with a OMRON 12VDC Relay,56KOhms and 2 NPN Transistors Darlington in Parallel. I've to replace by another relay . The problem I miss the conections from 56kOhms and 2 NPN parallel Transistors .
Anyone have any idea ?

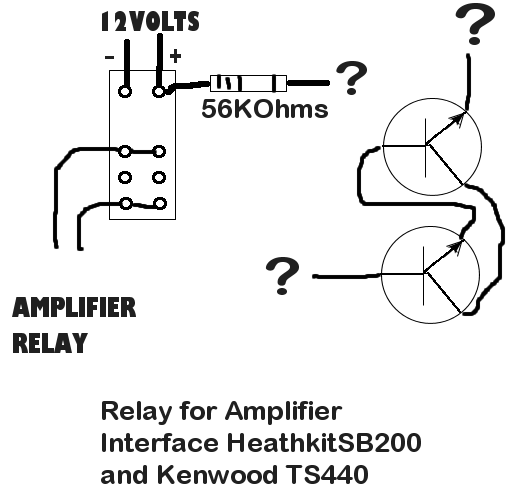

please look at image BUFFER circuit
Thanking in advance for replying.
73s frm Marq
