Does anyone know how to simulate inductors in PSPICE? THe inductor component doesn't seem to have a model or anything associated with it so the simulation doesn't work if you plop it into a schematic and give it a value.
Indcutors should be ready-to-use, exactly as resistors and capacitors.
I did a lot of simulations and have never had problems with inductors and PSPICE.

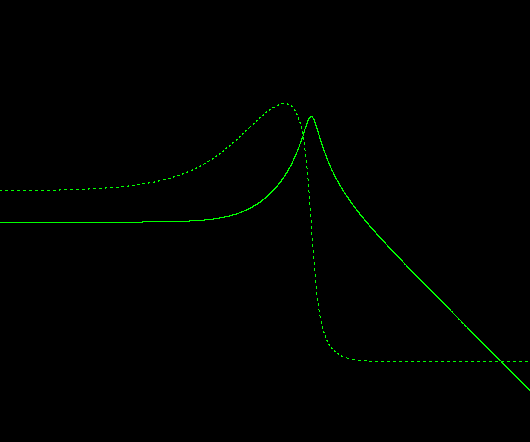

At home I use LTSpice and it too works fine. The attached image is the response of an RLC circuit. The plot clearly shows the effect of the inductance.
Note that the response depends on the component values; you might get a flattened response, but the inductor 'model' does work.
