Induction Heater Output Stage

Status
Not open for further replies.
A

Alexsgarage

New Member

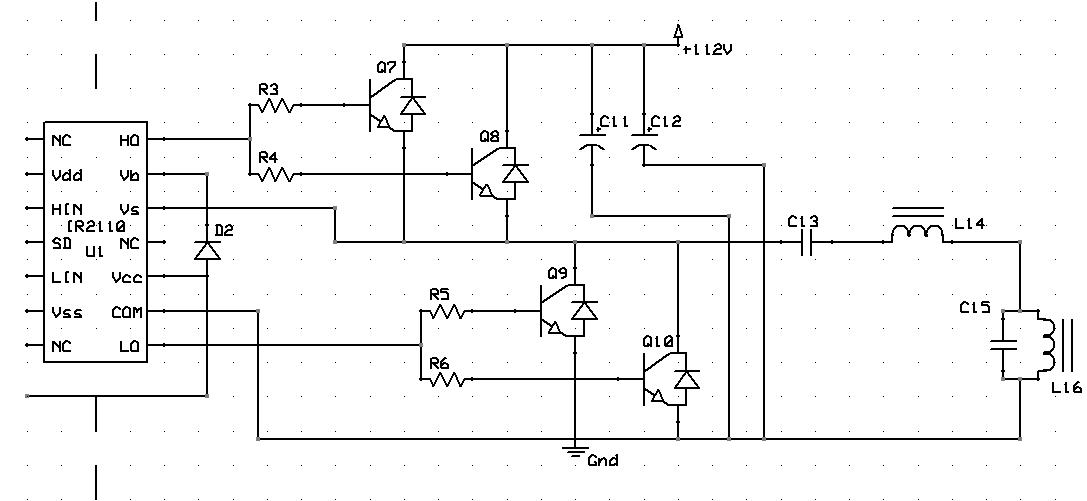

Here is a schematic for the inverter and output networks of an induction heater that I am planning to build. The driver IC is an IR2110 MOSFET/IGBT driver IC, datasheet Here. The other side of the IC has already been taken care of. The questions I have are: How to find the value of L14?, How to find the value of C13?, and is there anything I am missing from this circuit?:confused:
All help will be greatly appriciated.:)
