ID a Diode !

Status
Not open for further replies.
spike47

spike47

Member
Hi

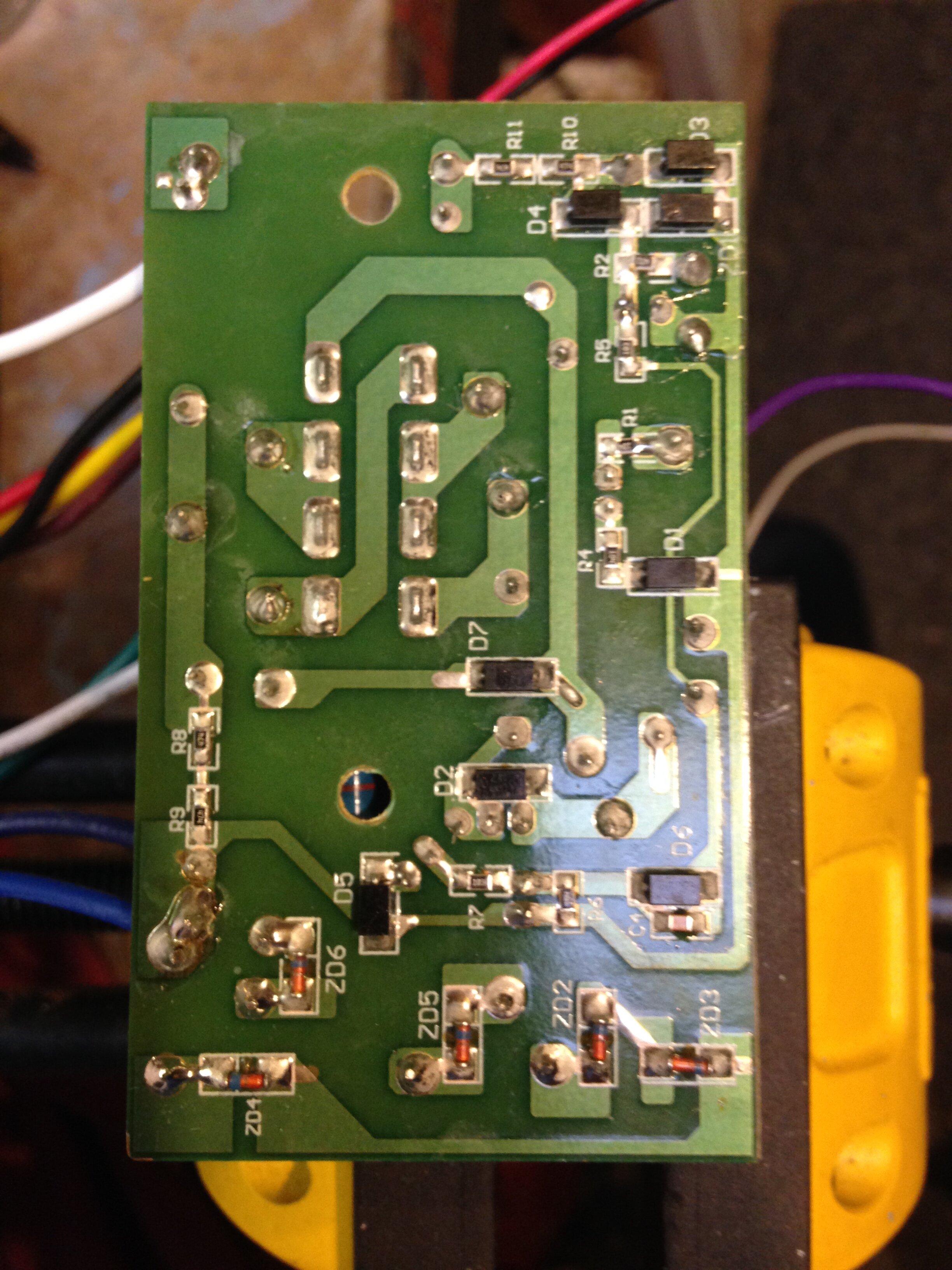

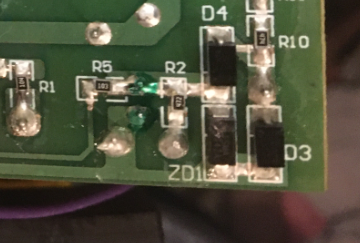

Don't seem to be able to id a diode to put into " Autodesk Eagle" the numbers on it are 15MA-1742A" it looks like a M7 package, like all the other M7's on the board , it is marked has ZD1 on the board, thought it was a Zener Rectifying Diode !.


cheers
Spike


Attachments

  • PCB 1.jpg
    PCB 1.jpg
    950.9 KB · Views: 201
  • PCB Cropped to ZD1.png
    PCB Cropped to ZD1.png
    206.9 KB · Views: 202
Likely a Zener Diode. You might have to hook up a current limited power supply and see at what voltage it starts to conduct.
