how to convert this circuit

Status
Not open for further replies.

khatib

Member

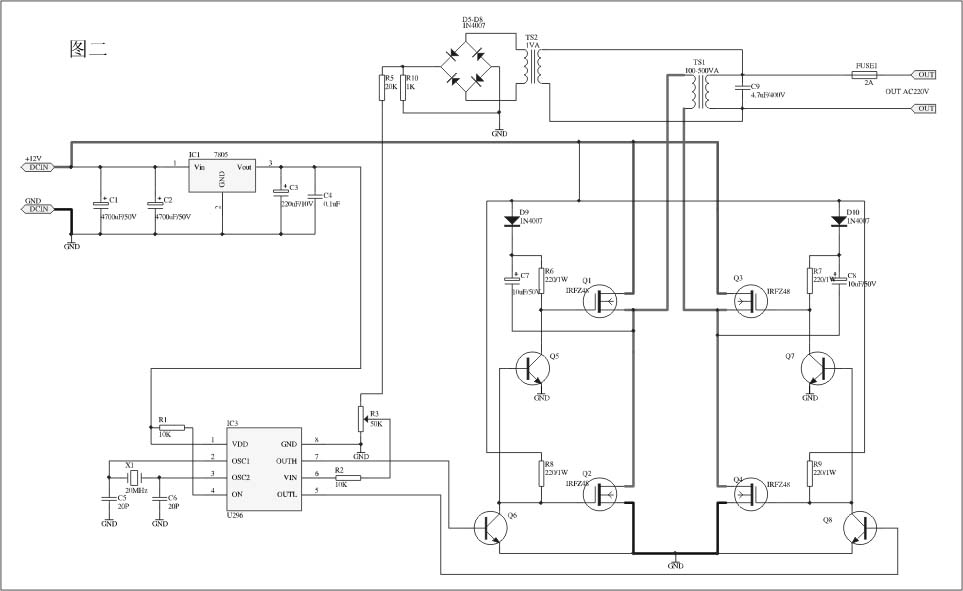

this inverter use 8 bit micro controller(U296) ... how to use PIC 16F877A.. ?
where can i connect out put to do PWM ?

PLEASE SEE CIRCUIT AND GIVE ME A REPLY ....

THANKS FOR YOUR REPLIES


Attachments

  • 1117077097.jpg
    61.8 KB · Views: 149
It's another poor design, but its OUTH & OUTL. I thought you gave up on your UPS project. Really it's cheaper to buy than build.

PS you might get more responses if you used a more descriptive subject line.

ok .. i want to know how to connect the pic to do pwm ... only ... which pin will be used??
thanks

Last edited:
Well you need an inverter. Why not take the time to understand the circuits you're trying to modify. Building a UPS is not easy and expensive. Just building an inverter with more than a few watts is tricky.
