How does it works???

Status
Not open for further replies.

PhilipWarence

New Member

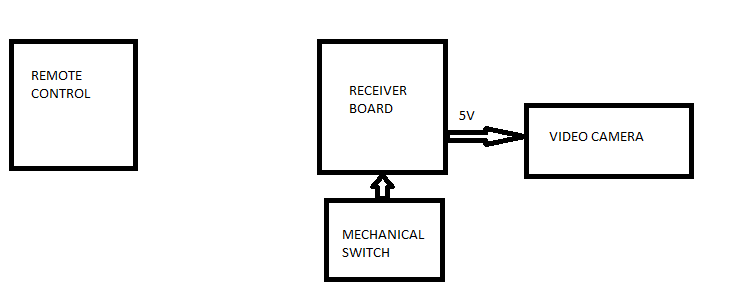

Im so cunfused on how does it works??? -.- I have here a simple block diagram of my remote controlled V-camera.
I dunno how the camera started to record video whenever I pressed the button in the Remote control???
By the time I had turn on the switch, the 5V goes in to the video camera(indicated by a LED in the camera) but not yet started recording video before I had pressed the button in the R.Control.

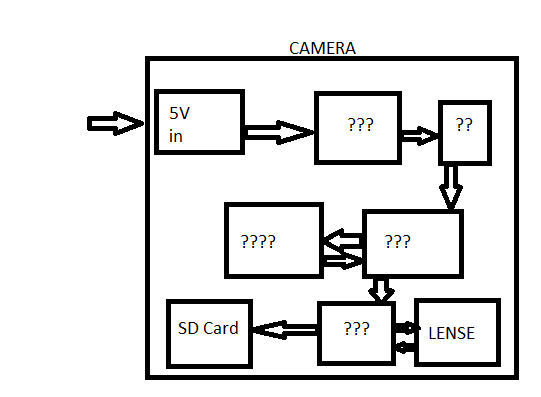

I wanna know what are the other stuff inside the camera, its signal flow and on how it works like I have said?

** It doesnt necessarily mean that the flow and numbers of blocks are exactly like what I had attach below.
