Help with wiring up a IEC320 C14 socket

StealthRT

Member
Hey all i purchased this on ebay and wanted to verify that i have the pinout's correct before i go and hook it all up to live wires :)

Here is the socket:



and here is the data on it:
Product Name: Power Socket w Switch Fuse
Material (External): Plastic, Metal
Power Supply: 10A 250V
Plug Type: 3 Pin IEC320 C14
Description:
3 pin IEC320 C14 plug, 7 terminals, is used widely in lab equipment, medical devices, fitness equipment, industrial automation equipment, etc. Use only with a 250V fuse.
I will be bypassing the fuse since this is being spliced into a surge protector. So that being said i was thinking this is how it would hook up:



What i can not figure out (or find a pin out of) is the on/off switch on the top. It has 4 terminals and im not sure which is in and what is out and how the 3 wires hook to it?

Any help would be great! :)

David


duffy

New Member

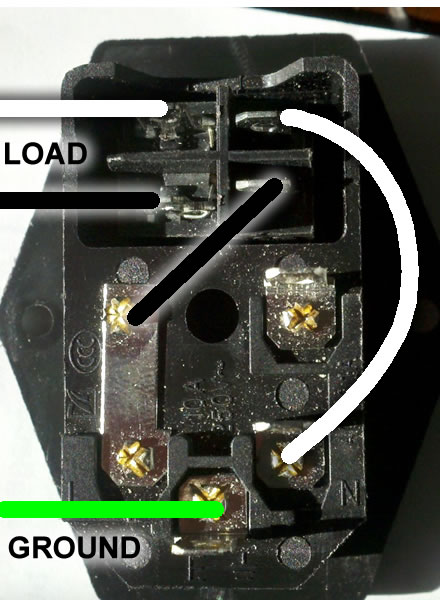

The two on the top connect together, and the two on the bottom connect together (left-right) when the switch is thrown. Top 2 are isolated from bottom 2.


duffy

New Member

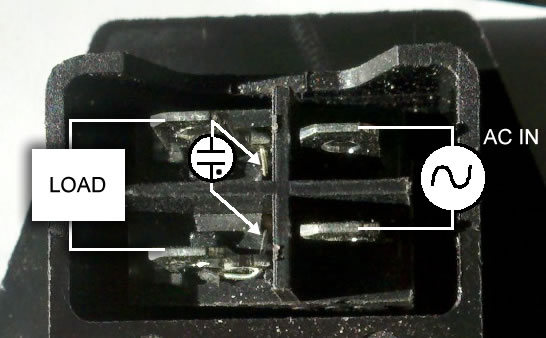

Also notice the two little wires on the leftmost lugs. See them? Those are for the neon light. Those lugs should be on the "load" side of the switch.


Attachments

Last edited:

NOBYKOBE

New Member
what are the white and black lines as i only have one load coming out , which one do i connect to a transformer for example?! and how can i connect this View attachment 68148
thanks for your help

Last edited:

KeepItSimpleStupid

Well-Known Member
Most Helpful Member
Duffy has it basically right, but you were asked what country your from or what is the mains supply in your country?

The ebay listing is labeled 250 V, so therefore I would suspect that the lamp (lighted switch) is for 250 V.

In the US, you normally don't switch the Neutral, but inside a device it's usually permissable.

The switch is a DPST or Double Pole Single Throw. The note that the load should be on the same side as the small wires for the light is a good one.

US colors are N=White, L=Black and Ground = Green.

There is IEC colors of green with yellow which is ground and blue and brown which I don't have a good way of remembering.

In the US, what I would do is align the plug with an outlet and identify the wide side. This is Neutral. Then you can use an ohmmeter to identify the Neutral terminal. So without having data, that method works.

If your in a 120 V territory, then the lamp may be dim or not light at all.

The green wire goes to any exposed metal or a metal case.

At only one point for the entire house N is connected to Ground or Earth. Ground only carries fault currents.

Do, you see why the country or mains voltage is required?

In any event, if you are on a 120 V system, you should see 120V between L and N and 120 V between G and L and approximately 0 V AC between N and G. Phantom voltages can occur if the connection is high resistance. So, 60 V means something is wrong and it's a common value to see.
