Help with 12 VAC - 5VDC

Status
Not open for further replies.

smithp4

New Member
Anyone have any schematics of how I might go about doing this.......

its 12 VAC, 150 mA of current..........I need at least a clean 5 volt DC signal......

psu

Hi,

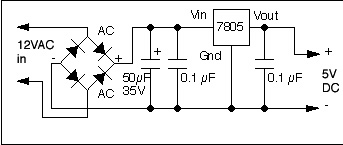

this should do the trick- see the diagram attached. The diodes are 1N4001, and the .1uf capacitors need to be rated for at least 25V or so.

D.


Attachments

  • 5VPSU.jpg
    14.1 KB · Views: 534

smithp4

New Member
I don't mean to sound stupid..........but how would I wire the four diodes together on a solderless breadboard


bmcculla

New Member
The 4 diodes together like that is called a "Bridge rectifier". You can buy bridge rectifiers in a nice package with 4 pins making it easy to solder to your board.

Brent
