Help needed how to simulate 2 microcontrollers

H

hssn601

Member

• Jun 7, 2011

• #1

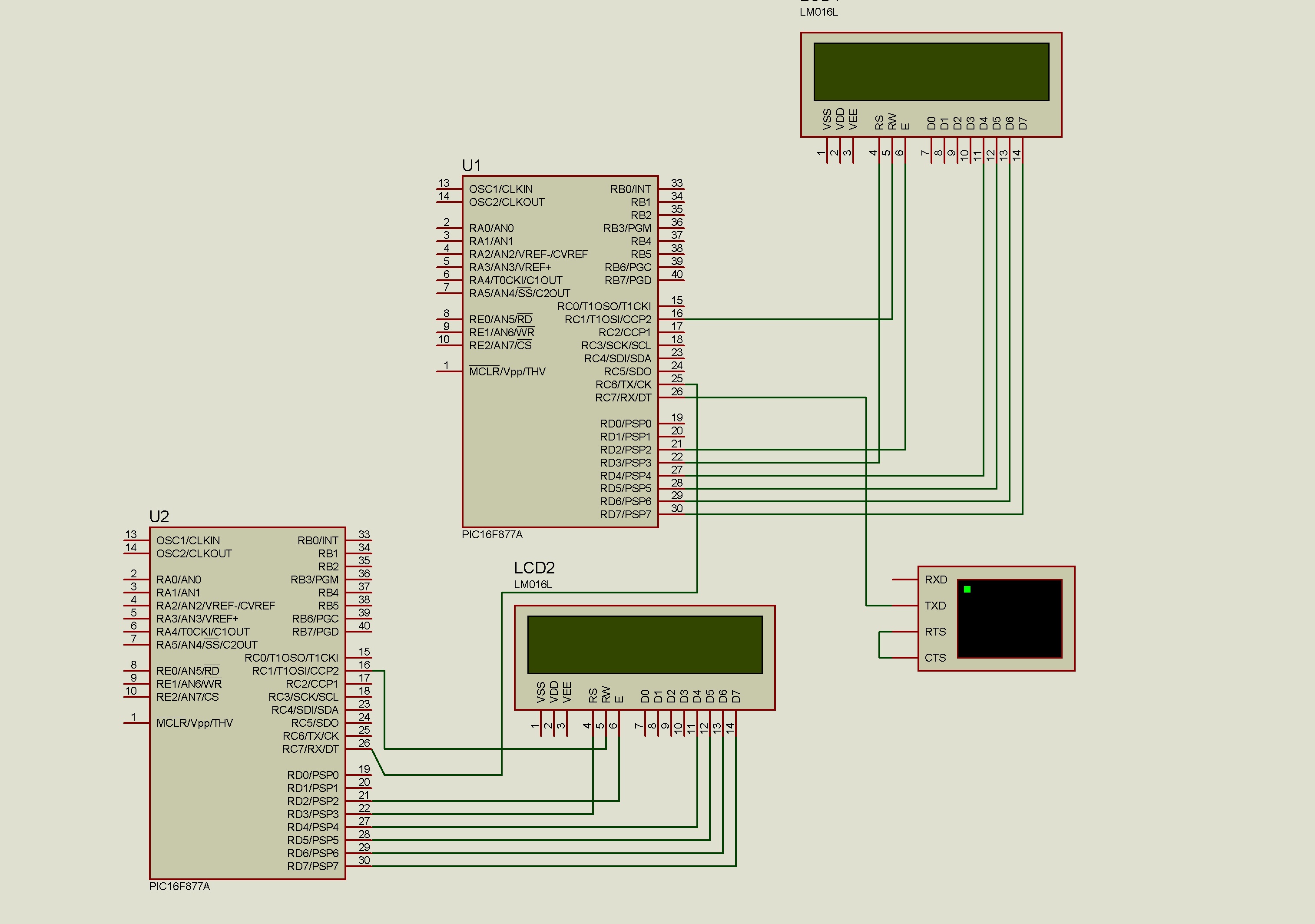

Help needed how to simulate 2 microcontrollers at same time with different hex files
only 1 microcontroling is executing program at a time in protues .
sorry for bad english .



Attachments

• Untitled.jpg

  565.2 KB · Views: 193

OlPhart

Member

• Jun 7, 2011

• #2

I guess I don't see the problem: both uCs run as state machines, a command comes in and they respond to it. The 1st uC gets commands from a box of buttons/switches and outputs to its' LCD and/or out its' serial Tx. The 2nd uC gets commands from the 1st uC and outputs to its' LCD.

Each has a definable command/response protocol (Don't They??), so you can build and debug each as separate blocks. Or, is there a Lot more to it than you're describing...

It's not like a synergistic setup, where execution of each is interdependent on some/all others... a Much More interesting thing to write/debug. <<<)))



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Jun 7, 2011

• #3

I have done this in the past with no issue's at all, however you can only debug one.



H

hssn601

Member

• Jun 7, 2011

• #4

here is my code ..while simulationg both us's whith the same code only uc is giving characters on lcd...if i use only 1 uc than every thing is ok 1st uc takes data from rx and put it on lcd and tx



Attachments

• lcd+srial.c

  903 bytes · Views: 165
• lcd+srial.hex

  2.5 KB · Views: 177

Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Jun 8, 2011

• #5

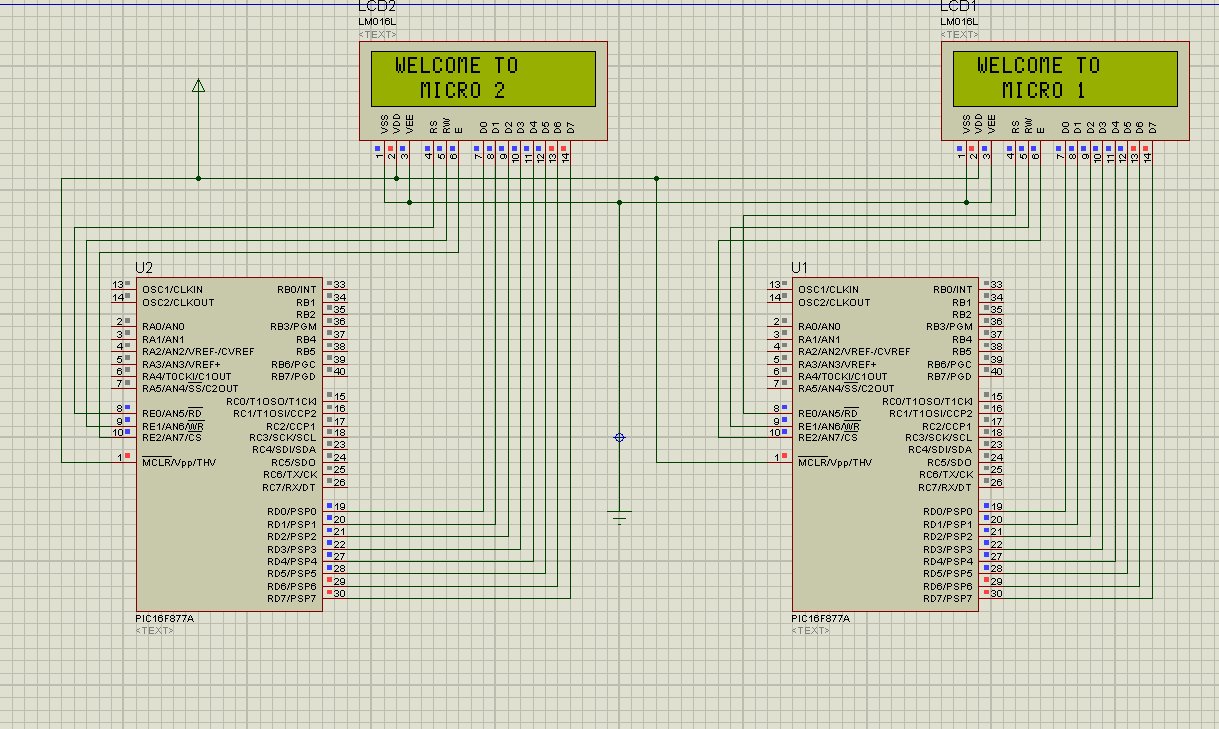

This is ISIS running two micos and two LCD's
(note.. the hex files ARE NOT named the same ie..hex1.hex and hex2.hex)



Attachments

• 2xmicros.jpg

  210.1 KB · Views: 200

H

hssn601

Member

• Jun 11, 2011

• #6

i have 1 more question if i replace the wire with an rf module than this program will work or not
if not than what i have to doo?



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Jun 11, 2011

• #7

You can't sim rf modules.. If you use easy radio modules or Xbee they operate as a cable replacement.... This will work



H

hssn601

Member

• Jun 11, 2011

• #8

@ian can you please give me the model no of xigbee or easy radio



H

hssn601

Member

• Jun 11, 2011

• #9

i can simulate gps in protues?



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Jun 11, 2011

• #10

ISIS will not simulate RF devices... But as long as the real world device acts like a cable! you don't need to simulate.. There is no gps simulation either..

When I need to simulate these devices. I quickly knock up a VB application then comunicate with ISIS vis com0com http://com0com.sourceforge.net/...



H

hssn601

Member

• Jun 11, 2011

• #11

**broken link removed**

will this extract lattitude/longitude??
i mean practically



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Jun 11, 2011

• #12

If it is a valid NMEA sentence!! Have you got all the valid sentences?



H

hssn601

Member

• Jun 14, 2011

• #13

gpss

here is my code and schematic first mc sends contineously gps sentences while second uc extract latt/long the problem is that it only get latt/long 1 time after that it doesnot update latt/long..

please help.
thankss in advance..



Attachments

• mc1_gps.c

  941 bytes · Views: 166
• mc1_gps.hex

  3 KB · Views: 175
• Rcv_mc2.c

  842 bytes · Views: 160
• Rcv_mc2.hex

  2.8 KB · Views: 175
• lattlong(replace.cby.dsn).c

  75 KB · Views: 168

Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Jun 14, 2011

• #14

The printf statement outputs a $GPGLL twice in one sweep you may only get the second reading over and over, the first will be an instant..

To test its functionality create two adjustable variables and then printf("$GPGLL, %d,%d,N,00500.0006,E,104715.203,A*37", varX, varY); to change each iteration.



H

hssn601

Member

• Jun 14, 2011

• #15

for(temp=0;temp<10;temp++)
{
printf("$GPGLL,4101.2503,N,01959.8130,E,135944.703,A*30");
printf("$GPGGA,135944.70,4101.2503,N,01959.8130,E,1,04,2.0,-0036,M,,,,*38 ");
printf("GPAPB,A,A,0.0,L,N,,,358.1,M,SIM002,358.0,M,,,*20 ");
printf("$GPGGA,135944.70,4101.2503,N,01959.8130,E,1,04,2.0,-0036,M,,,,*38 ");
printf("$GPVTG,360.0,T,348.7,M,000.0,N,20.0,K*43,11111111111111111111111111");
}

delay_ms(500);
for(u;u<10;u++)
{
printf("$GPGLL,5500.2503,N,01959.8130,E,135944.703,A*30");

}



}


i have also tried this but it only gets ist sentence



H

hssn601

Member

• Jun 14, 2011

• #16

while(1)
{
printf("$GPGLL,%ld.2503,N,01959.8130,E,135944.703,A*30",temp);
printf("$GPGGA,135944.70,4101.2503,N,01959.8130,E,1,04,2.0,-0036,M,,,,*38 ");
printf("GPAPB,A,A,0.0,L,N,,,358.1,M,SIM002,358.0,M,,,*20 ");
printf("$GPGGA,135944.70,4101.2503,N,01959.8130,E,1,04,2.0,-0036,M,,,,*38 ");
printf("$GPVTG,360.0,T,348.7,M,000.0,N,20.0,K*43,11111111111111111111111111");
temp++;
}


its also not working (



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Jun 14, 2011

• #17

Maybe the serial port is in error.. I have never used mickroC so I cant debug your code.. Can you place a breakpoint in your serial() routine to view each time it receives L and L, then you can view the buffer.. when the loop is bigger than 25 and you have done you should clear the buffer so you can see if the serial() routine is working correctly.



H

hssn601

Member

• Jun 14, 2011

• #18

well i am using ccs compiler



Ian Rogers

User Extraordinaire

Forum Supporter

Most Helpful Member

• Jun 14, 2011

• #19

I've never used that either... What is it like debugging at C level?



H

hssn601

Member

• Jun 15, 2011

• #20

i am also newbie
